Wind Blade Lifter

Conquer the Peak: HUAYUE Wind Blade Lifter Systems

The era of easy wind farm construction is over. Today's projects are moving deep into the mountains, and turbine blades are growing longer (70m, 80m, and beyond).

Standard telescopic trailers have hit a dead end. They cannot negotiate the hairpin turns, cliff edges, and forests of mountain roads.

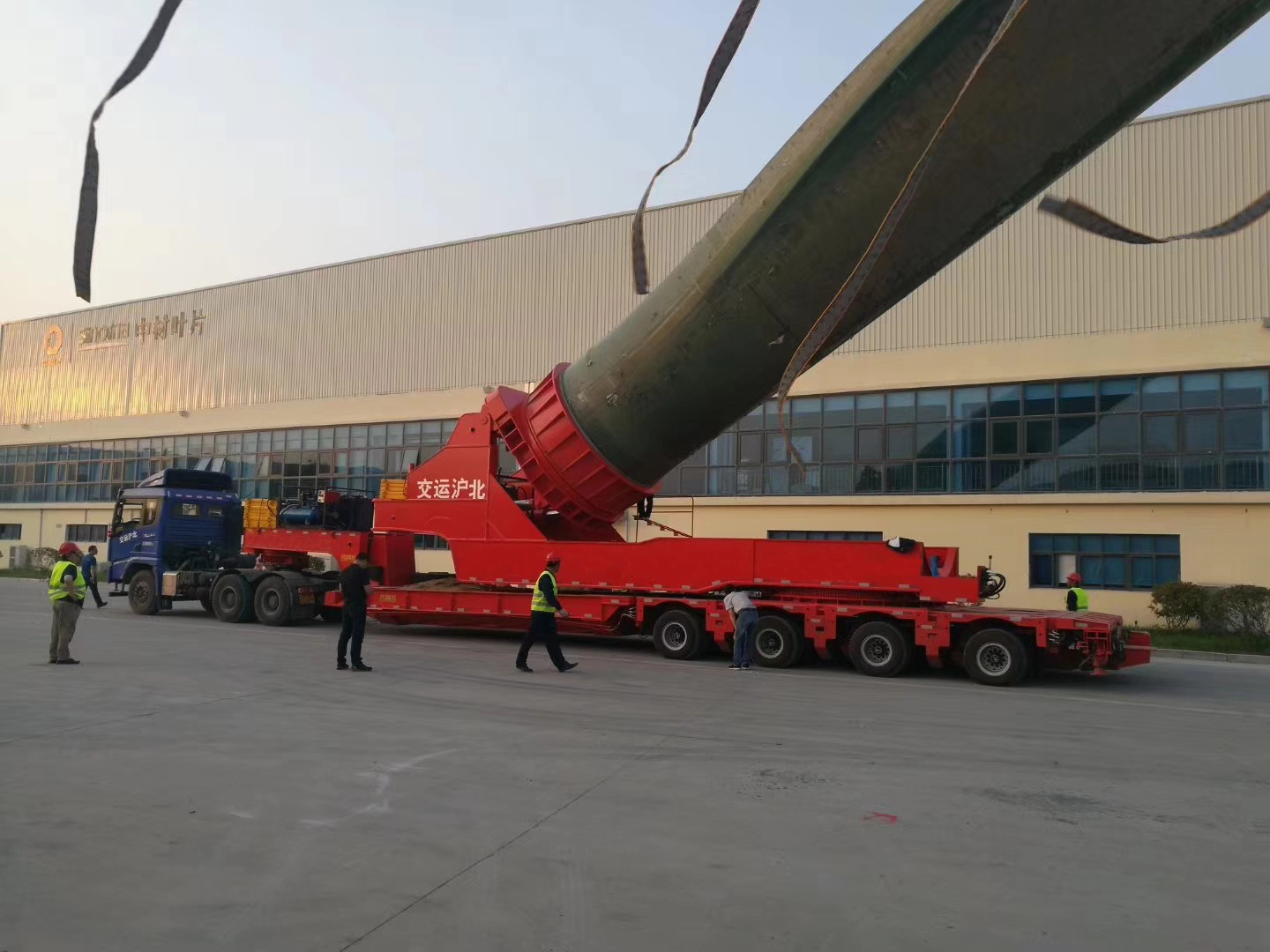

Enter the HUAYUE Wind Blade Lifter (Rotor Blade Adapter). It doesn't just transport the blade; it makes it "dance" through the air, bypassing obstacles that were previously impossible to clear.

The Concept: "Carry it High, Turn it Tight"

This is not a trailer; it is a precision robotic arm mounted on a heavy-duty platform.

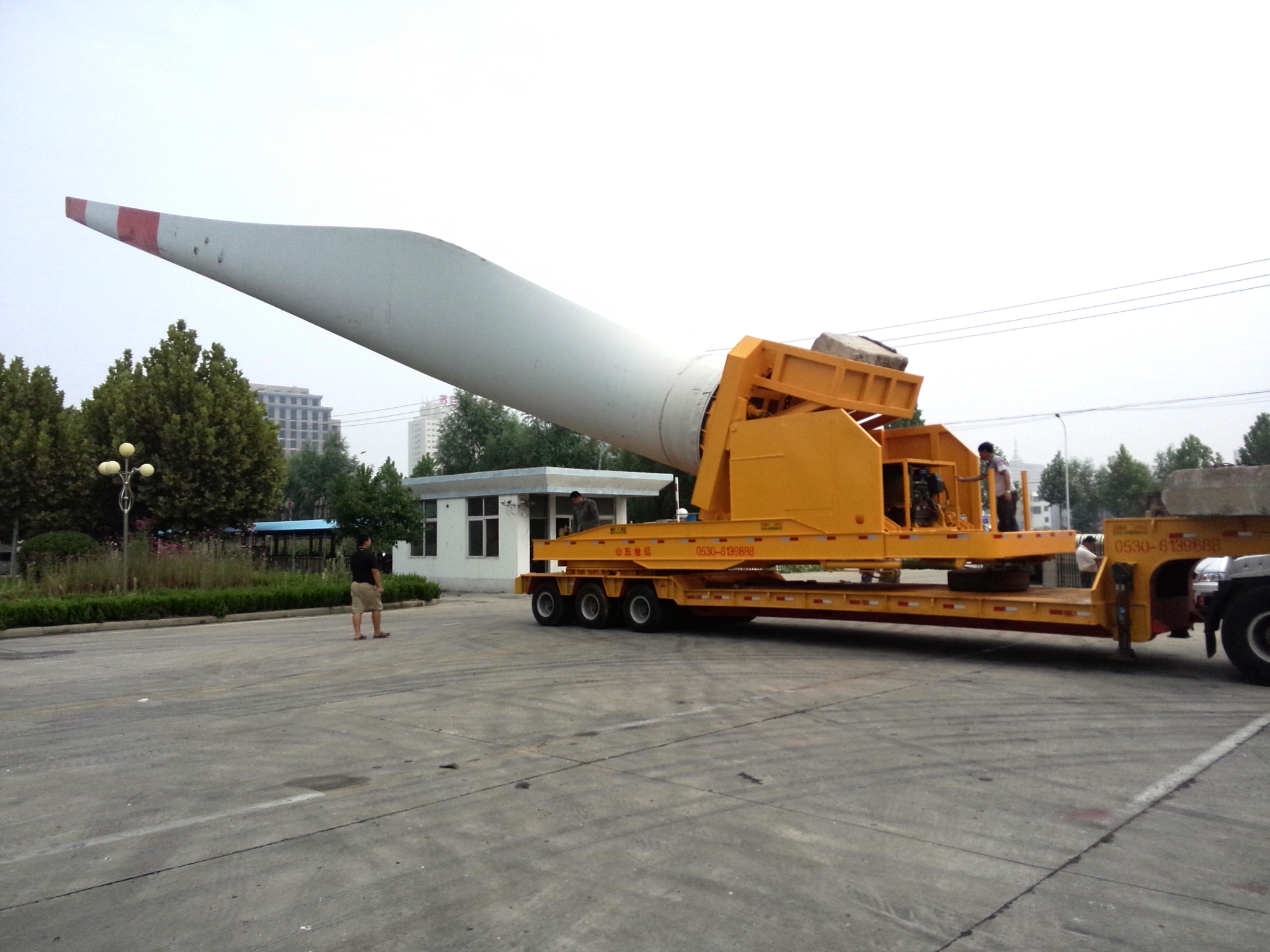

• The "Lift" : When facing a sharp turn or a village house, the hydraulic system lifts the blade up to a 60° angle. This shortens the total vehicle length by meters, allowing you to pass through tight curves like a compact truck.
• The "Spin" : The adapter can rotate the blade 360°. Does the tip of the blade hit a tree or a power line? Simply rotate it away. The blade moves with the terrain, not against it.

Engineering Specs: Built for the Extreme

Designed to mount on HUAYUE Hydraulic Modular Trailers (HMT) or Self-Propelled modules (SPMT)

Feature:Specification

Max Lifting Angle:Up to 60°

Up to 60°:360° Continuous

Payload Moment:Up to 700 mt

Counterweight:Hydraulic Sliding

Safety System:Wind Speed Sensor

Safety is the Bottom Line

Lifting a 20-ton blade into the sky creates a massive "sail effect." Stability is everything.

• Smart Counterweight Balancing : As the blade lifts, the center of gravity shifts. HUAYUE's patented Sliding Counterweight System automatically moves horizontally to the opposite direction, acting like a tightrope walker's pole to keep the vehicle perfectly stable.
• Remote Control Operation : The operator doesn't need to sit in the cab. Using a wireless remote, they can walk alongside the vehicle (or stand at a vantage point) to precisely control the lift and rotation with a clear line of sight.

Universal Compatibility

Already have an existing fleet? No problem. The HUAYUE Blade Lifter is engineered with a Universal Mounting Base. It is designed to integrate seamlessly with mainstream hydraulic modular trailer systems worldwide.

• Seamless Integration: Whether your fleet utilizes standard heavy-duty modules or specialized hydraulic axles, our system is ready to connect.
• Custom Adapter Kit: We provide a precision-engineered Adapter Kit tailored to your specific vehicle interface. This ensures a rock-solid mechanical and hydraulic connection between our lifter and your existing axle lines, allowing you to upgrade your capabilities without replacing your entire fleet.

We provide the Adapter Kit to ensure a rock-solid connection between our lifter and your existing axle lines.

The HUAYUE Promise

Operating a blade lifter requires skill. We don't just sell you the machine; we transfer the capability.

• On-Site Flight Training: Yes, we call it "flying" the blade. Our expert engineers will travel to your mountain site to train your operators on wind speed management, counterweight balancing, and emergency lowering protocols.
• Structural Lifetime Warranty: The lifting arm bears immense stress. Built with HG60 High-Tensile Steel, we guarantee the main structure for life.

Critical Parts Support: Slewing bearings and hydraulic valves are covered for 2 years with our "Air Freight Included" policy.

Facing a Tough Mountain Route?

Don't spend millions building new roads. Adapt your transport instead. Send us your Route Survey (Turning Radii, Gradients) and Blade Drawings. HUAYUE engineers will simulate the transport using 3D Path Analysis software to prove feasibility.
