Mobile Substation Trailer

Power Anywhere:

HUAYUE Mobile Substation Transport Systems

In emergency power restoration or remote mining operations, a Mobile Substation is the lifeline. But getting these massive units to the site is often harder than building them.

The destination is rarely a paved highway. It’s often a muddy construction site, a rocky mountain path, or a cramped existing substation with narrow gates.

Standard flatbeds fail here. They get stuck on rocks or can't make the tight turns. Enter the HUAYUE Hydraulic Mobile Substation Trailer. We don't just carry your equipment; we give it "legs" to walk over obstacles and "hips" to twist through tight corners.

The Challenge: Rough Roads & Tight Gates

Mobile substations (60kV - 220kV) are heavy, high-value assets. Transporting them involves two critical problems:

• Ground Clearance: Fixed-axle trailers bottom out on uneven ground. One rock can damage the chassis or the expensive electrical equipment above.
• Maneuverability: Substation access roads are notoriously narrow. A standard rigid trailer simply cannot make the turn without destroying fences or infrastructure

Engineering Principle: Master of Terrain

HUAYUE solves these problems with Hydraulic Modular Technology.

Hydraulic Lifting & Leveling：

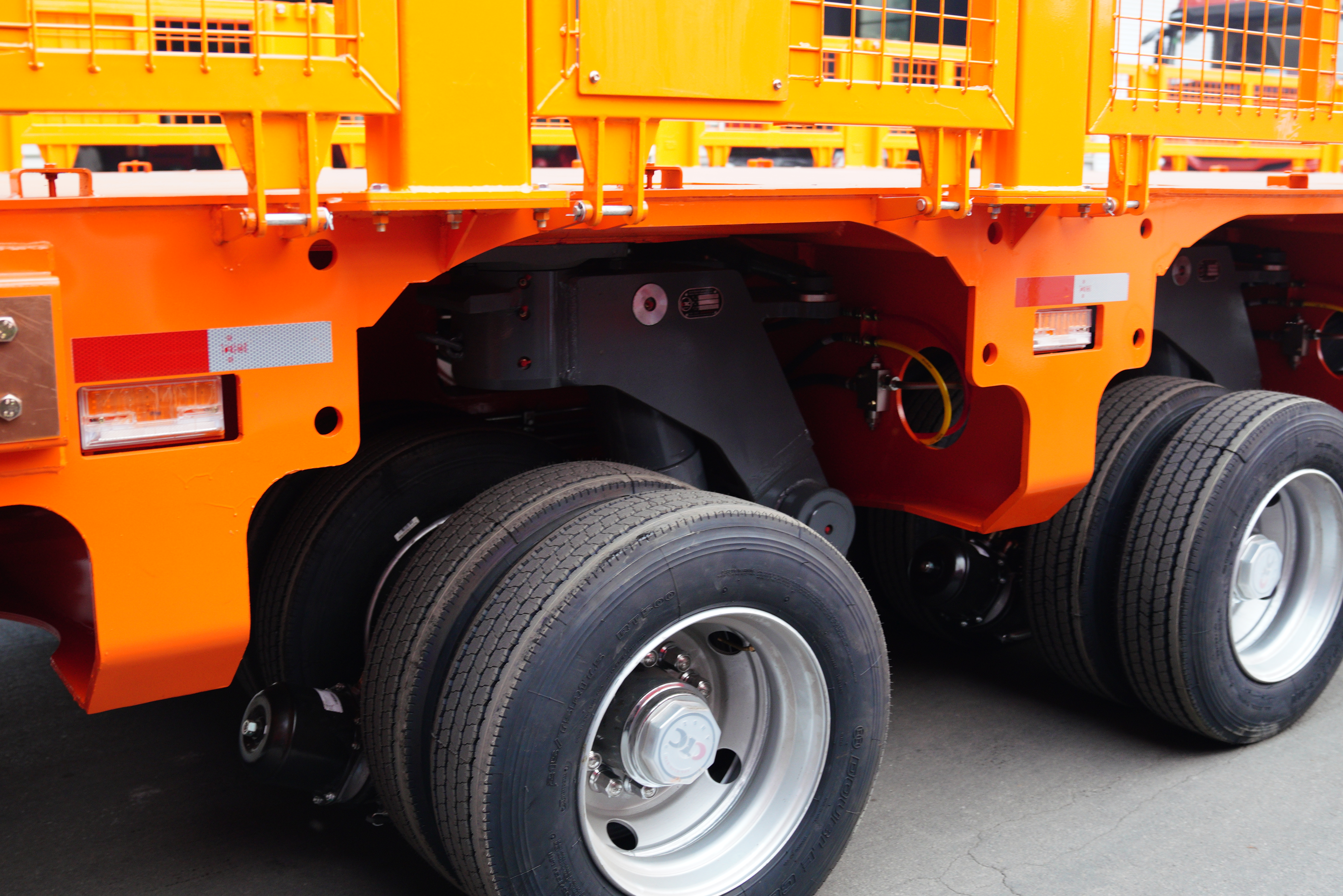

(This is not a static chassis. It moves.) The entire trailer deck sits on heavy-duty hydraulic cylinders.

• Off-Road Capability: The chassis offers a huge lifting stroke of ±300mm (Total 600mm). Encounter a ditch or a hump? Simply lift the chassis to clear it.
• 3-Point / 4-Point Support: On uneven slopes, the hydraulic groups are linked to ensure the trailer deck (and your transformer) remains perfectly level, preventing dangerous tilting.

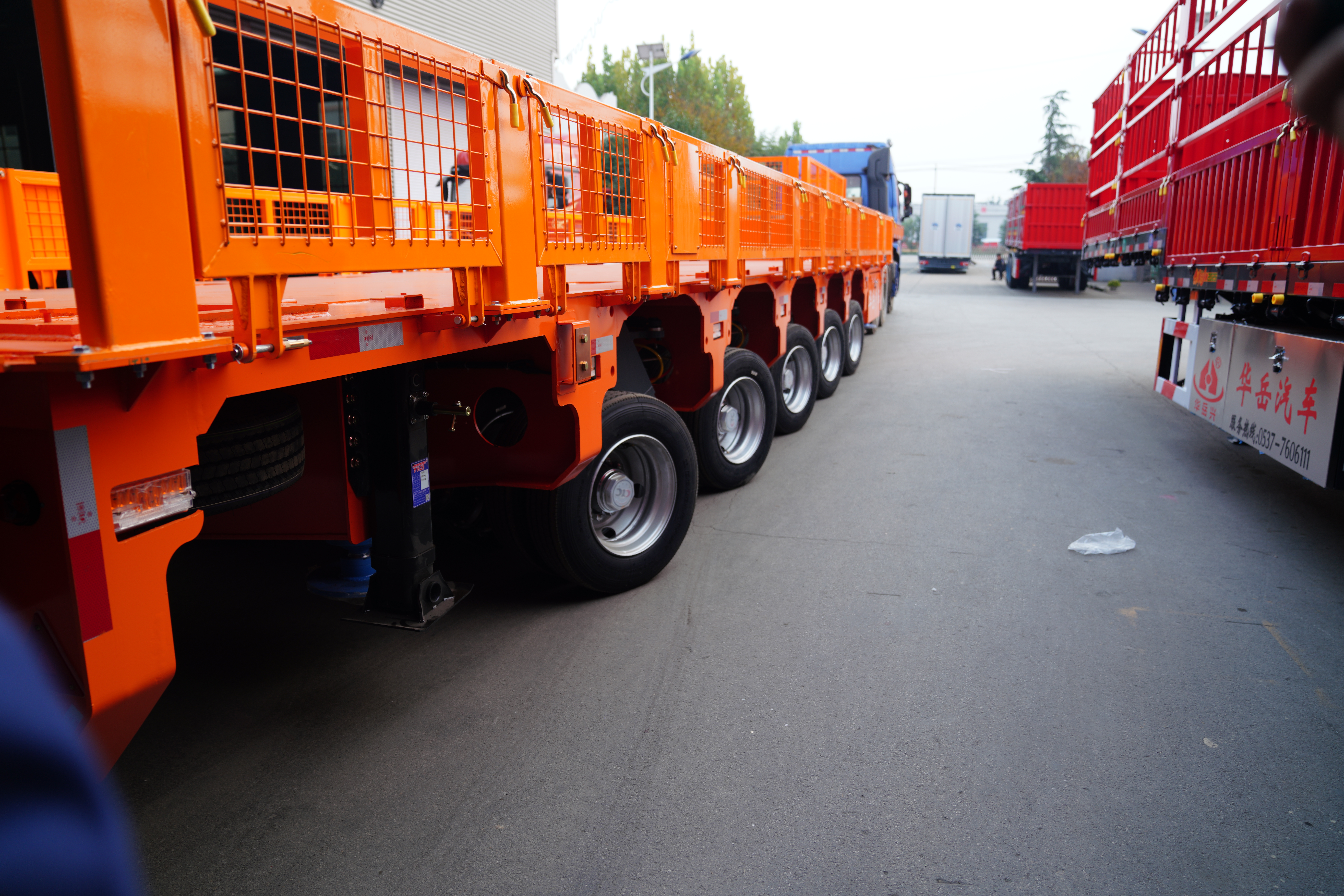

Smart Multi-Axle Steering System

(Precision where it counts.) Navigating into a cramped substation requires more than just a truck driver's skill. The HUAYUE trailer assists the turn.

• Active Front & Rear Steering: Key axle groups at the front and rear of the trailer are designed to steer.
• Reduced Turning Radius: By actively steering the rear wheels in opposition to the front, the vehicle significantly cuts its turning circle.
• Tire Protection: This system minimizes "tire scrub" (lateral dragging) during tight cornering, extending tire life and protecting the road surface at the substation entrance.

Flagship Specifications

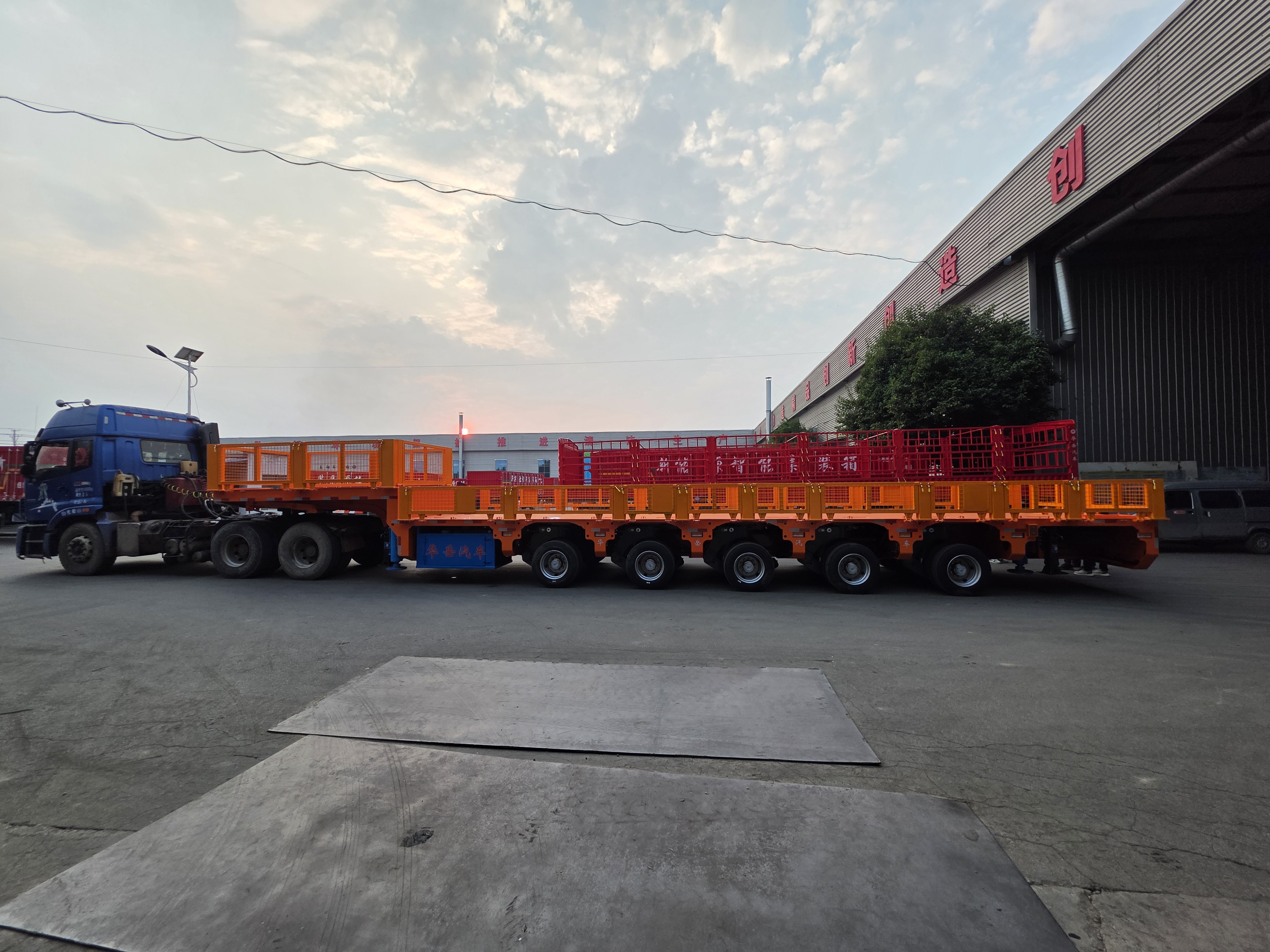

Built to carry Containerized Substations and Mobile Transformers.

Feature：Spec

  Payload Capacity：100T - 350T

Suspension Stroke：±300 mm

Steering Angle：55° / All-Wheel

Axle Type：Hydraulic Pendulum

Tires：215/75 R17.5

Customized for Your Power Unit

We understand that every Mobile Substation is different. We don't sell "off-the-shelf" standard trailers; we build the chassis around your equipment.

• Integrated Design: We can design the chassis beam to integrate directly with your transformer base or switchgear container, saving weight and height.

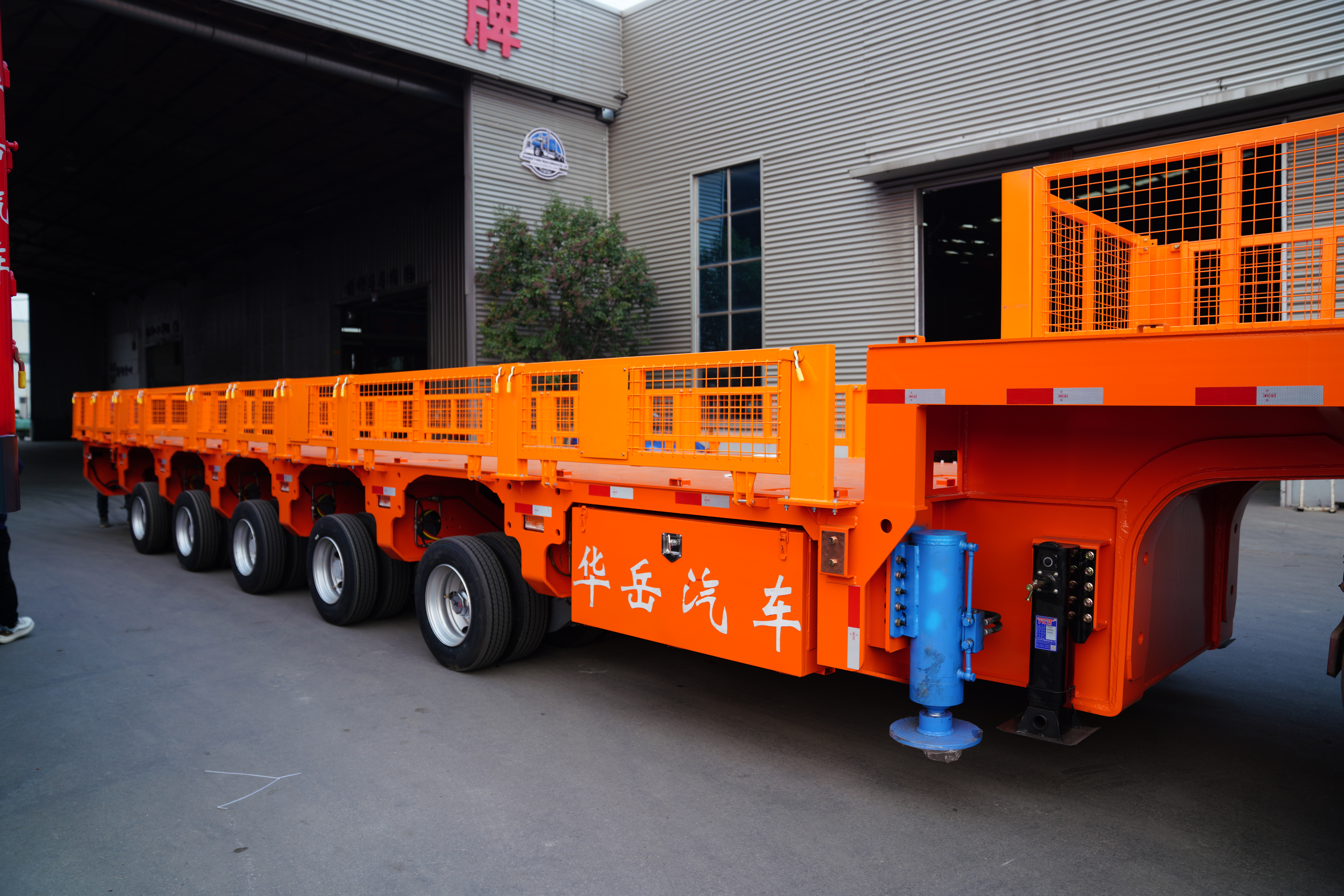

• Self-Loading (Optional): We can integrate hydraulic landing legs, allowing the trailer to "sit down" and detach the prime mover, turning the trailer into a temporary fixed foundation.

The HUAYUE Promise

We treat our customers like partners. Here is our "Turnkey" support package:

• Lifetime Chassis Warranty: Built with HG60 High-Tensile Steel. We guarantee the structural integrity for the life of the vehicle.

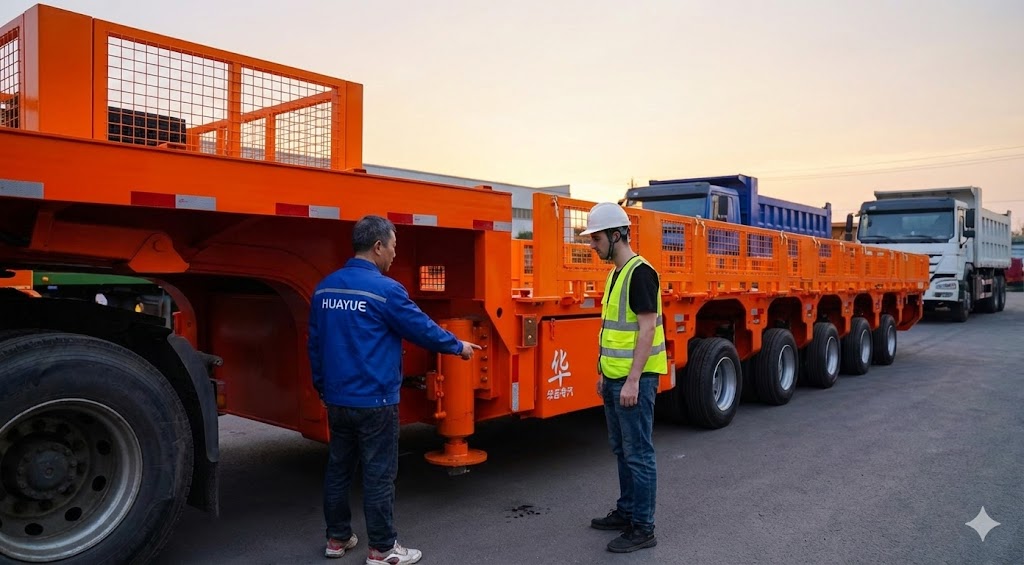

• Global On-Site Support: Our engineers will travel to your site to assist with the initial mating of your substation equipment to our chassis.
• Hydraulic Parts Guarantee: Critical valves and cylinders are covered by a 2-Year Warranty with free air freight replacement.

Ready to Mobilize Your Power?

Don't let rough terrain stop your project. Send us the Dimensions & Weight of your Substation Unit. HUAYUE engineers will design a chassis with the perfect steering and lifting capabilities.
