HUAYUE Detachable Gooseneck Trailers (RGN)

Master heavy loads with HUAYUE RGN Trailers. Featuring a 6-cylinder hydraulic gooseneck, mechanical safety locks, and an ultra-low 200mm ground clearance. Backed by our Lifetime Warranty and global air-freight parts support.

Mastering Heavy Loads: The HUAYUE Detachable Gooseneck Trailer (RGN)

In the heavy transport industry, your cargo is invaluable. Whether it's a 100-ton mining excavator or precision industrial equipment, it demands a transport platform that is absolutely stable, safe, and efficient.

HUAYUE provides more than just trailers; we deliver Engineering-Grade Transport Solutions. Our Detachable Gooseneck Trailer (also known as RGN or Lowboy) is engineered to solve the challenges of over-height cargo and self-propelled equipment loading, perfectly balancing structural integrity with operational ease.

    The Engineering Advantage: Why HUAYUE?

      Positioned as China's premier high-end manufacturer, HUAYUE competes directly with  European engineering standards (comparable to Goldhofer or Nicolas specs) but at a fraction of the investment. We bridge the gap between world-class performance and cost-efficiency.

• Lifetime Warranty on Main Structure: We refuse to compromise on materials. By utilizing High-Tensile HG60 Steel, we ensure structural integrity that outlasts the competition. We are so confident in our quality that we offer a Lifetime Warranty on the main beam.
• Tailored Global Customization: No two roads are the same. From compact 2-axle units to heavy-duty multi-axle configurations, we tailor every dimension to strictly comply with your specific country's road regulations and payload limits.

To achieve this, we deconstruct the trailer into three precision-coordinated modules: the Intelligent Gooseneck, the Ultra-Low Deck, and the Modular Running Gear.

     1.Intelligent Hydraulic Gooseneck: Safety & Efficiency

         The gooseneck is the heart of the RGN. HUAYUE rejects simplistic single-cylinder        designs in favor of a 6-Cylinder Precision Linkage System, redefining operational standards.

• 6-Cylinder Precision Control:

1. 2x Lift Cylinders & 2x Support Cylinders: Provide massive lifting power.
2. 2x Locking Cylinders: Ensure absolute stability when the neck is locked to the deck.
3. Dual-Control System: Every cylinder supports both Manual Valve and Wireless Remote Control. Your driver can operate the detachment from a safe distance, just like piloting a drone.

• Unique Safety Feature: Mechanical Safety Locking Legs

1. The Engineering Logic: Even the best hydraulic systems face the risk of micro-leakage (hydraulic drift) during long hauls.
2. Our Solution: We integrated two Manually Retractable Mechanical Support Legs. Once deployed for travel, the load is transferred from hydraulics to a rigid mechanical structure. This ensures Zero Drift Risk—the gooseneck will never sink, guaranteeing 100% transport safety.

• Self-Aligning System:

Equipped with Dual Positioning Guides at the connection point. Even on uneven ground, the neck automatically aligns with the deck, improving loading efficiency by 30%.

• Weather-Resistant Design:

Standard 16.2kW Power Pack with a dust-proof housing. All internal plumbing is upgraded to Anti-Corrosion Copper Piping, withstanding rainforest humidity or mine site dust.Carrying 35-60 tons requires smart engineering, not just thick steel.

2.The Loading Deck: Uncompromised Strength

          Carrying 35-60 tons requires smart engineering, not just thick steel.

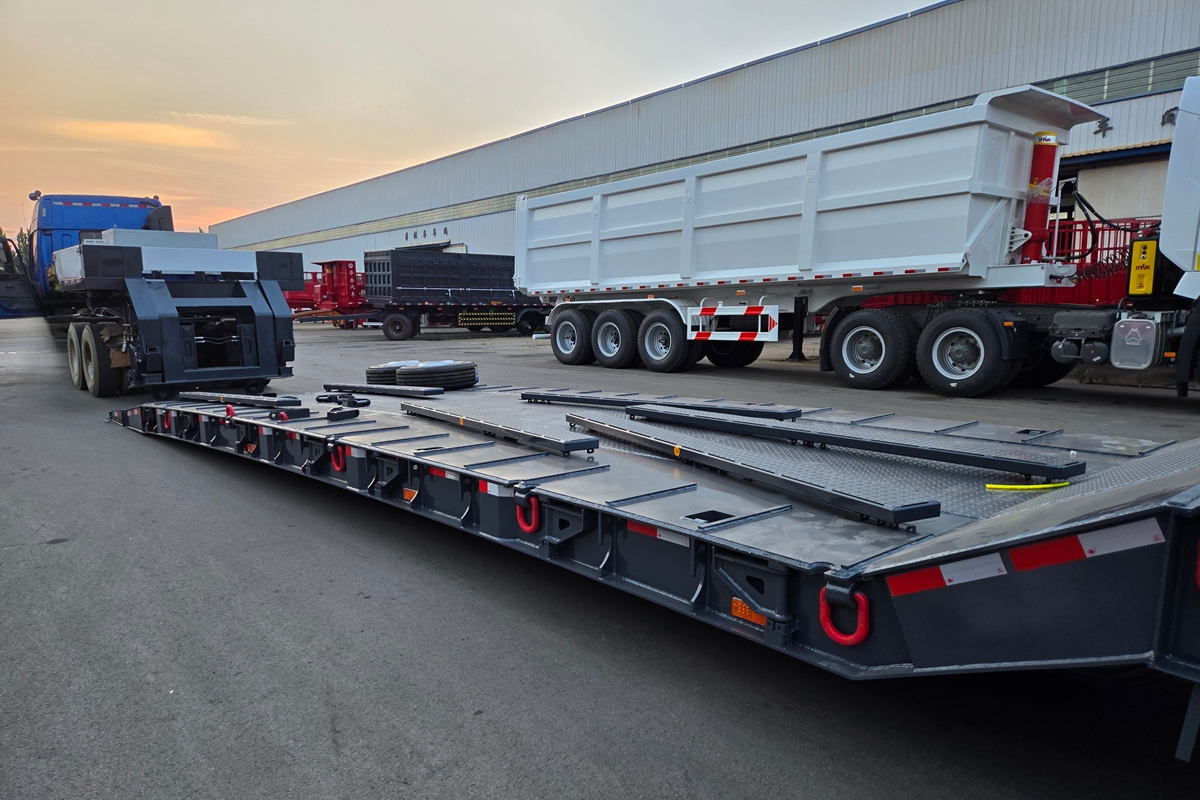

• Double-Locking Architecture:
• We utilize a Mortise & Tenon Joint for physical engagement, reinforced by High-Strength Cast Iron Pins. This design withstands immense longitudinal tension and shear forces.
• Golden Dimensions:

1. Standard Length: 7,000 mm

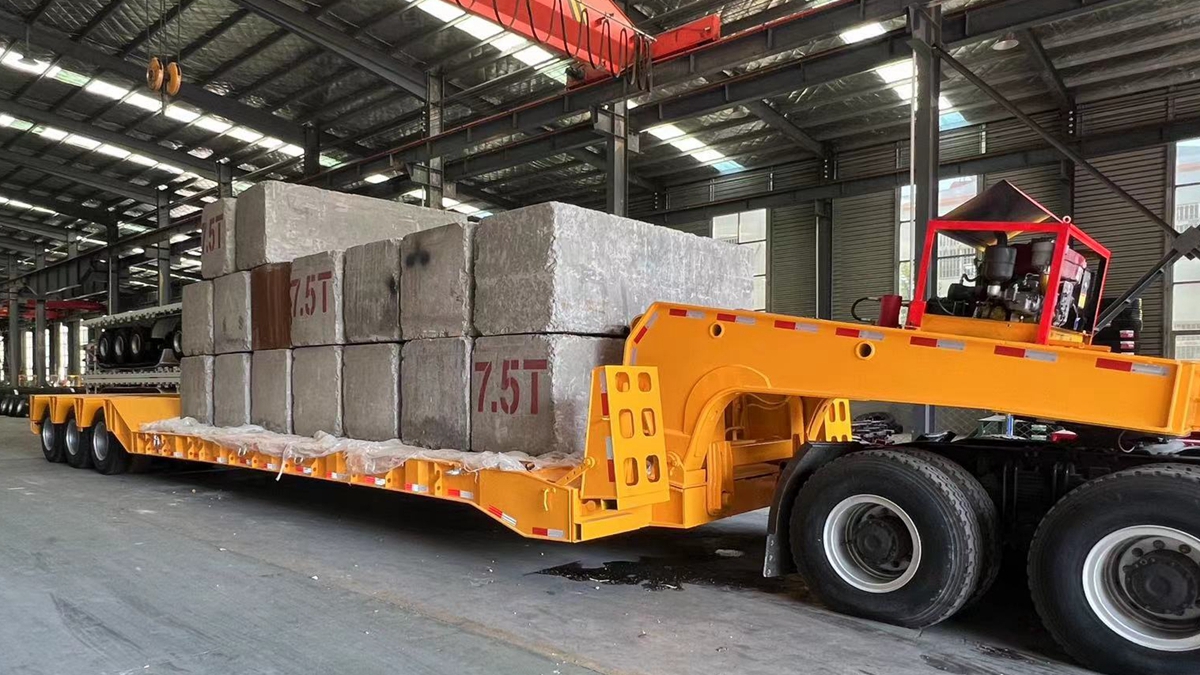

2. Ground Clearance: 200 mm (Ultra-low center of gravity for clearing low bridges).
3. Loading Height: 650 mm

• Customization:

1. Need width? Optional Swing-out Outriggers or Pull-out Spreaders for over-width loads.
2. Decking? Anti-slip checker plate or durable Apitong hardwood.

Engineer’s Note: Dimensions are just a starting point. Tell us your specific cargo (e.g., Wind Blades, Transformers), and HUAYUE engineers will calculate the optimal axle load distribution for you.

     3. Running Gear & Steering

• Tire Cover: Optional Full Cover (max deck space) or Open Design (lighter weight, better cooling).
• Suspension: Choice of durable Mechanical Suspension or height-adjustable Air/Hydraulic Suspension.
• Steering: Available with Self-Steering or Automatic Force Steering axles to navigate tight corners with 16m+ loads.

   The HUAYUE Global Promise

    Downtime costs money. That's why we offer the most aggressive warranty in the   industry:

• Replace, Don't Repair: Within the warranty period, for any non-human quality issues, we send brand-new replacements. No patching.
• We Pay Air Freight: To restore your operations fast, HUAYUE covers 100% of the Air Freight costs for warranty parts, regardless of weight.

1. Main Structure: Lifetime Warranty
2. Hydraulics: 2 Years
3. Other Parts: 1 Year

Not sure which configuration fits? Send us your cargo drawings or route description. The HUAYUE engineering team will provide a professional proposal including Axle Load Calculation and Swept Path Analysis within 24 hours.
