Breaking Limits: The HUAYUE Hydraulic Modular Trailer System

When conventional transport reaches its limit, the HUAYUE Hydraulic Modular Trailer (HMT) is just getting warmed up.

Designed for mega-loads exceeding 100 tons, this system is the ultimate solution for bridge construction, petrochemicals, and mining logistics. With its Lego-like infinite modularity and precision hydraulic suspension, HUAYUE HMT ensures safety for the world's most complex transport missions.

1.Flagship Specs: Defining Heavy Haul Standards

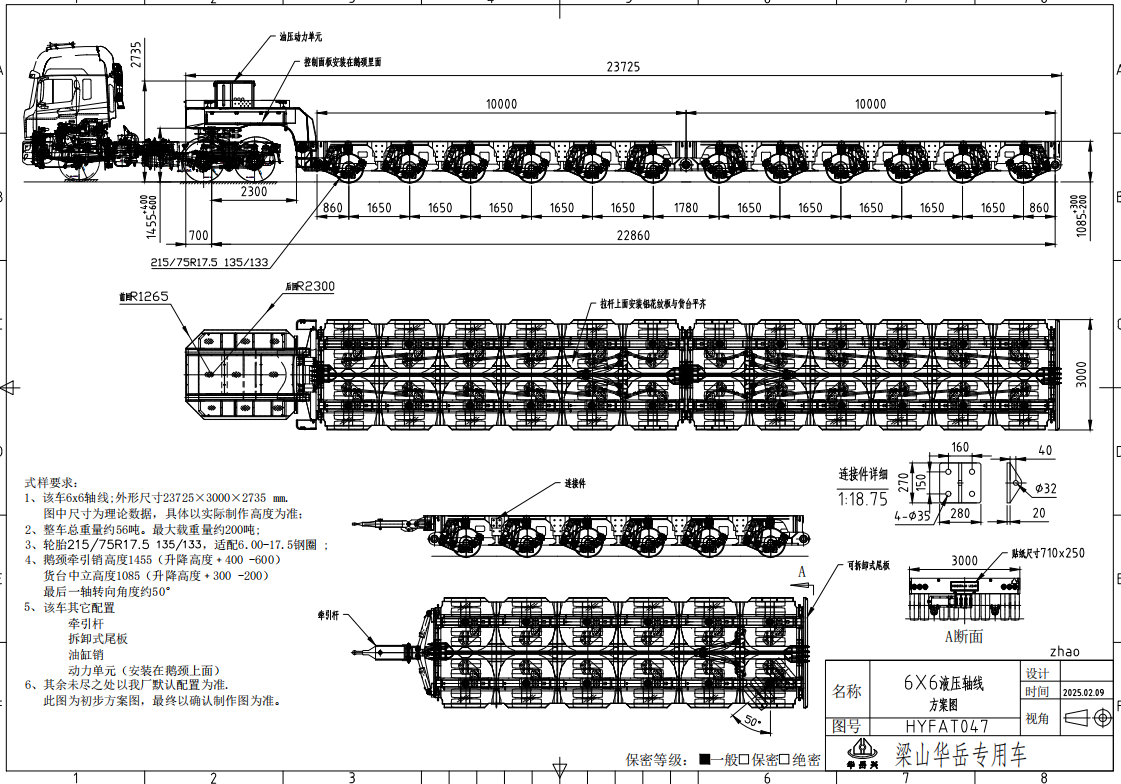

Based on HUAYUE 6-Axle Hydraulic Module engineering data:

Key Metric：Performance

Tare Weight：~52,000 kg

Suspension Stroke：±300 mm (Total 600mm)

Steering Angle：50° - 55°

Material：Q690D High-Tensile Steel

2.World-Class Supply Chain

Reliability depends on the smallest valve. HUAYUE builds with Tier-1 Global Brands:

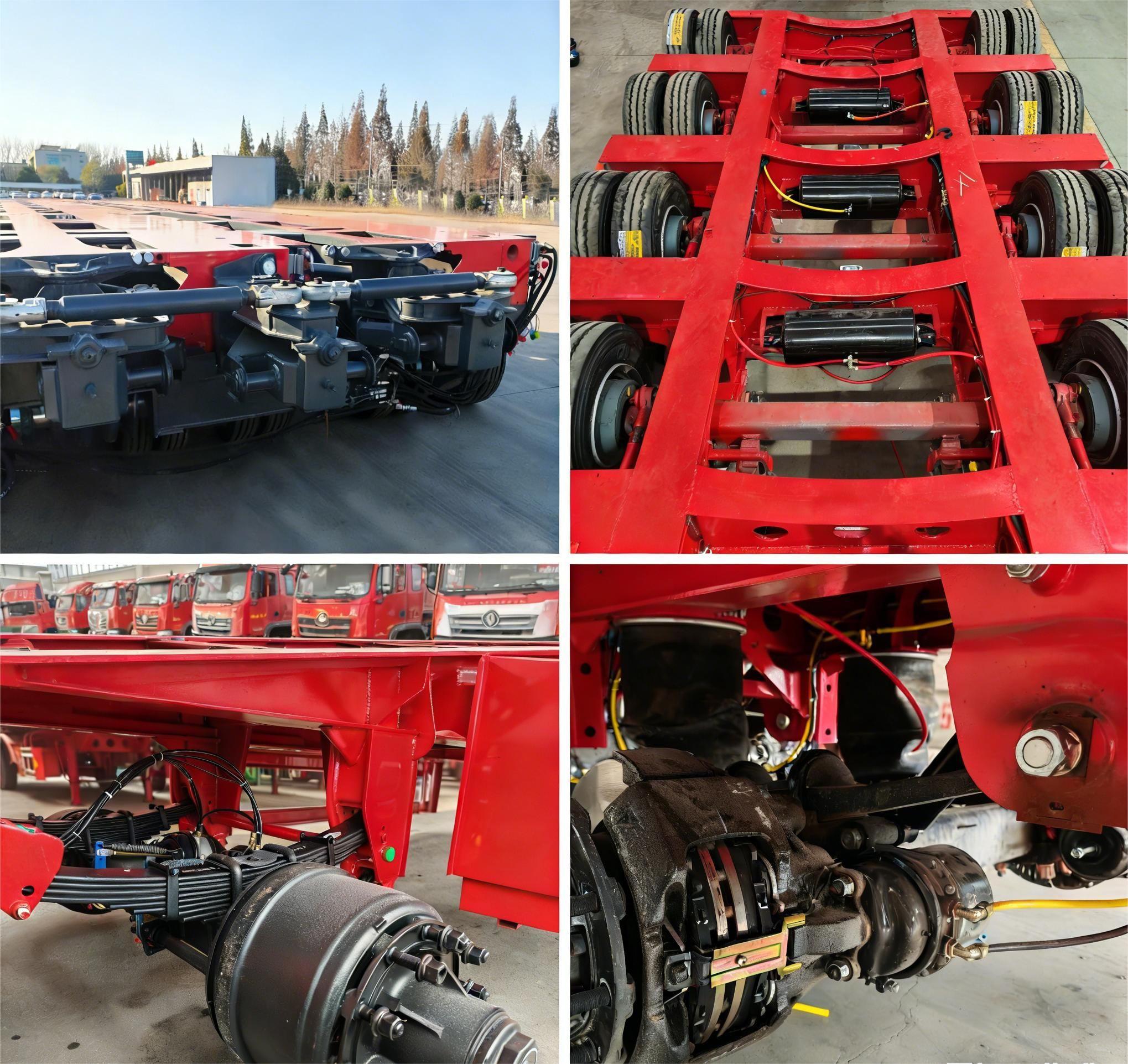

• Hydraulic Core:

1. Valves: KHB15 High-Pressure Ball Valves (Hydac equivalent) for zero leakage.
2. Couplings: Standard Stucchi BIR (Italy) for silky-smooth module connection without oil spills.
3. Fittings: Parker (USA) or EMB (Germany) fittings for aerospace-level vibration resistance.

• Precision Monitoring:

WIKA (Germany) pressure gauges for accurate feedback on suspension and steering bars.

• Braking Safety:

Full system equipped with WABCO valves and Sorl components for 20% faster response time.

3.Dual Engineering Solutions: Customized for Your Terrain

We offer two distinct chassis philosophies to match your specific operation:

• Option A: Performance Series (Precision Box Beam)

1. Design: Box-Beam Structure.
2. Advantage: High torsional stiffness, lighter weight, and extreme manufacturing precision.

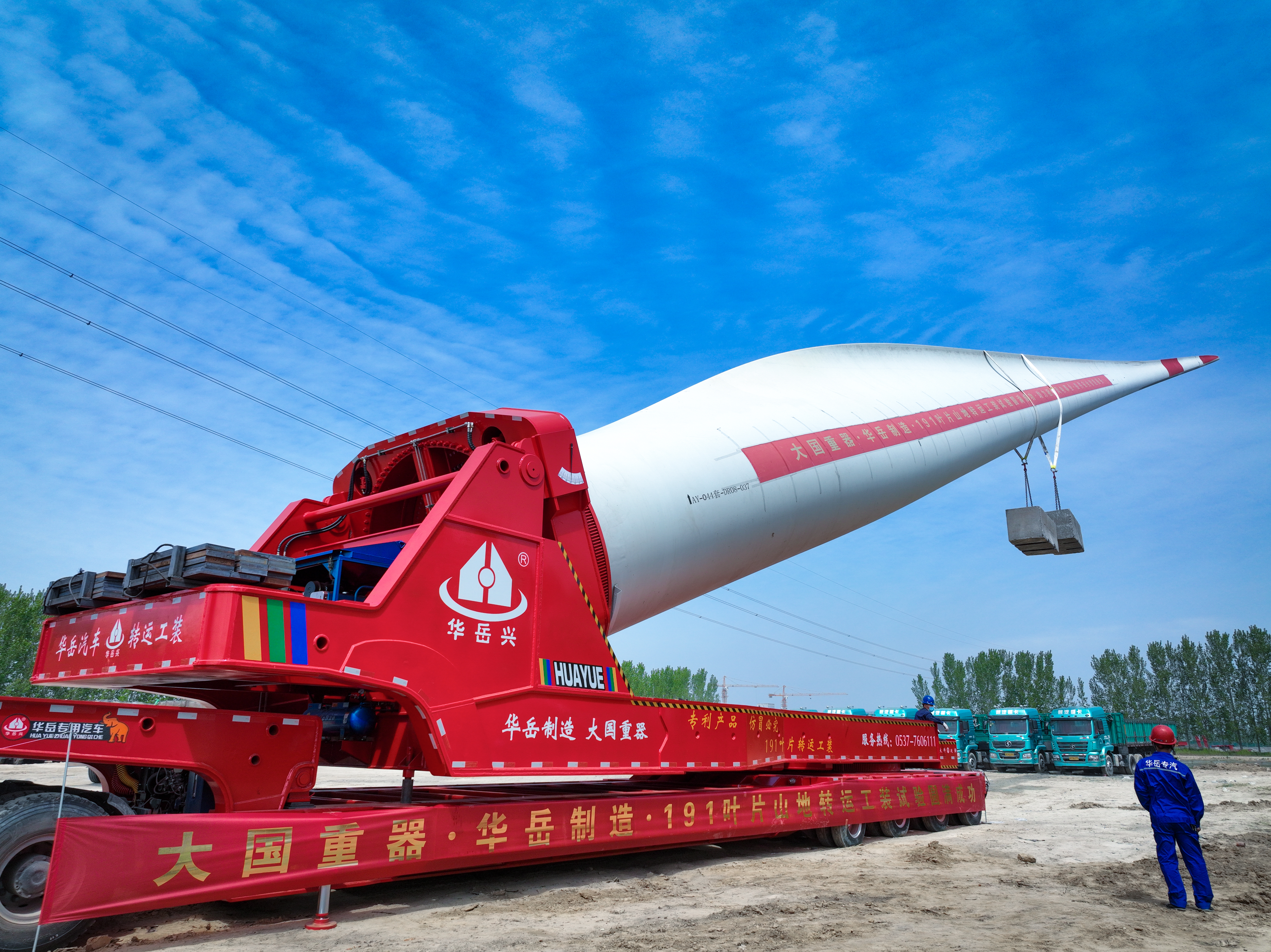

3. Best For: Road transport, wind energy, and precision equipment moving (Compatible with Goldhofer style systems).

• Option B: Heavy-Duty Series (Reinforced Open Beam)

1. Design: Reinforced I-Beam Structure.
2. Advantage: Extreme durability, easy maintenance access, and high redundancy.
3. Best For: Mining, off-road oil & gas, and rough terrain (Compatible with Nicolas style systems).

4.Versatile Configurations: Adapted for Every Transport Mission

1. Towing Options:

1. Hydraulic Power Gooseneck: Increases traction for prime movers.
2. Hydraulic Drawbar: Smaller turning radius, ideal for push-pull operations.

• Rear Loading:

   Double-Folding Hydraulic Ramps: A game-changer. Allows self-propelled machinery (drill rigs, crushers) to drive directly onto the module, eliminating crane costs.

5.The HUAYUE Promise: Beyond Manufacturing

Hydraulic modular trailers are complex systems. To ensure your team can master this "Steel Beast," we offer the highest service standard in the industry:

• Global On-Site Commissioning (Turnkey Service)

1. For first-time buyers, we don't just ship; we deploy experts.
2. On-Site Training: Our senior engineers fly to your location.
3. Hands-on Instruction: From coupling lines to leveling hydraulics and steering setup.
4. The Commitment: We do not leave until your team can operate the vehicle correctly, proficiently, and independently.

• Upgraded Warranty Policy:

1. Main Structure: Lifetime Warranty.
2. Hydraulics: 2 Years (Valves, Cylinders, Power Packs).
3. Air Freight Covered: We cover 100% of air freight costs for warranty parts.

Not sure which configuration fits? Send us your cargo drawings or route description. The HUAYUE engineering team will provide a professional proposal including Axle Load Calculation and Swept Path Analysis within 24 hours.
