How to Choose a 60-100T Heavy-Duty Lowbed Trailer? Anti-Sagging & Loading Safety Guide

In infrastructure, mining, and heavy-haul logistics, the standard fixed gooseneck lowbed trailer is the high-frequency workhorse of any fleet. However, when confronting 60 to 100 tons of massive crawler excavators or heavy transformers, cheap trailers on the market succumb to two catastrophic failures: permanent main beam sagging and fatal slipping accidents during rear loading. This guide will use HUAYUE’s classic 3-axle heavy-duty lowbed as a blueprint to deeply dissect how metallurgy and chassis engineering can completely eradicate the lethal risks of heavy-haul transport.

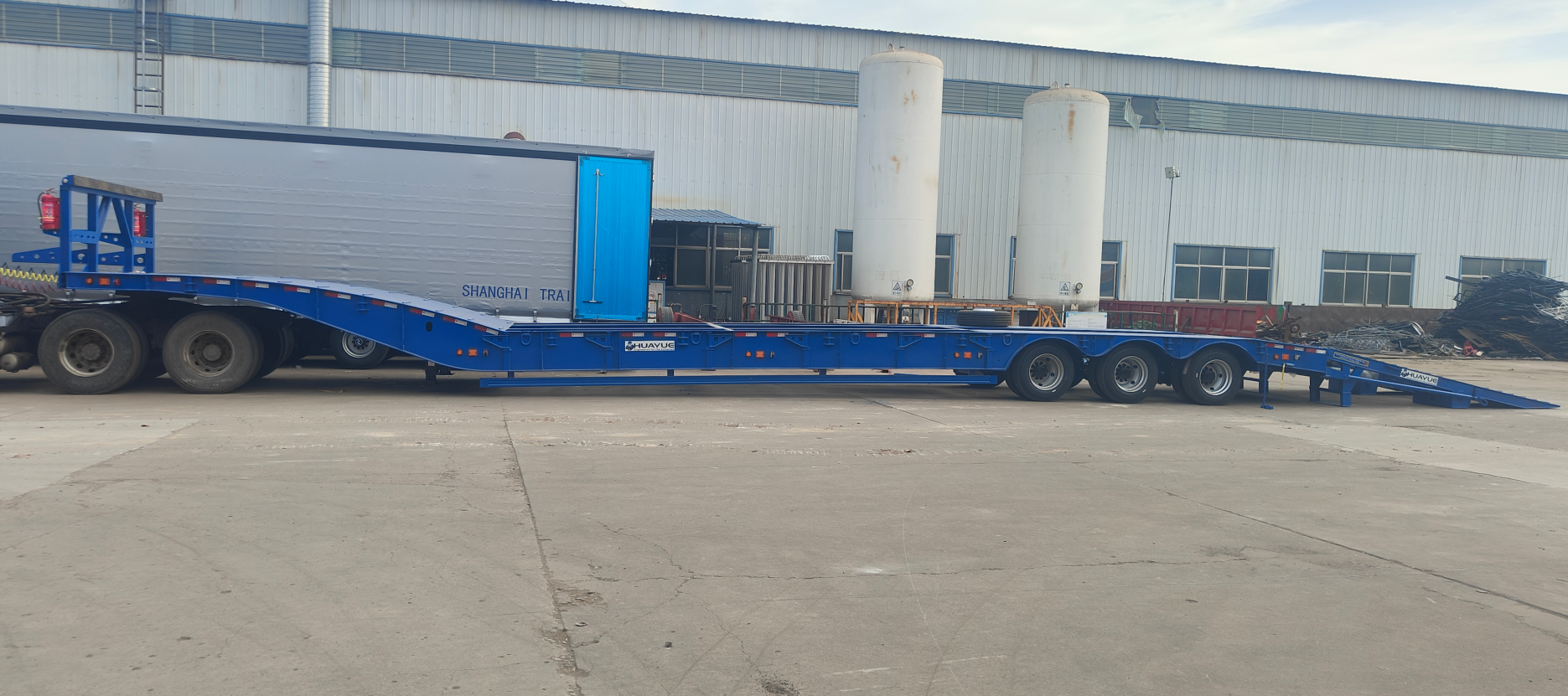

Core Technical Specifications

We manufacture a rigorous matrix of 2-axle, 3-axle, and 4-axle chassis engineered exclusively for the 60-100 ton extreme payload range. Below are the core specifications of our standard 3-axle version:

• Maximum Dimensions: Total length of 17,420mm, featuring a massive flat working deck of 12,802mm; standard width of 3,000mm.

• Load-Bearing Hub: Densely packed with three 16-Ton heavy-duty axles, paired with an indestructible Mechanical Leaf Spring Suspension.

• Tire Configuration: Standardized with 275/70R22.5 low-profile heavy-duty tires.

• Rear System: Standardized with 3000mm wide heavy-duty double-folding hydraulic ramps.

The Metallurgy of Heavy Haul: Eradicating Main Beam Sagging

Under 60-100 tons of concentrated payload, standard steel suffers from metal fatigue. HUAYUE incorporates ultra-high-yield special structural steel into high-stress zones. This high-tensile material not only reduces the tare weight but equips the main beams with astonishing Torsional Rigidity, ensuring the trailer never fractures or permanently sags when carrying hundred-ton behemoths over uneven terrain.

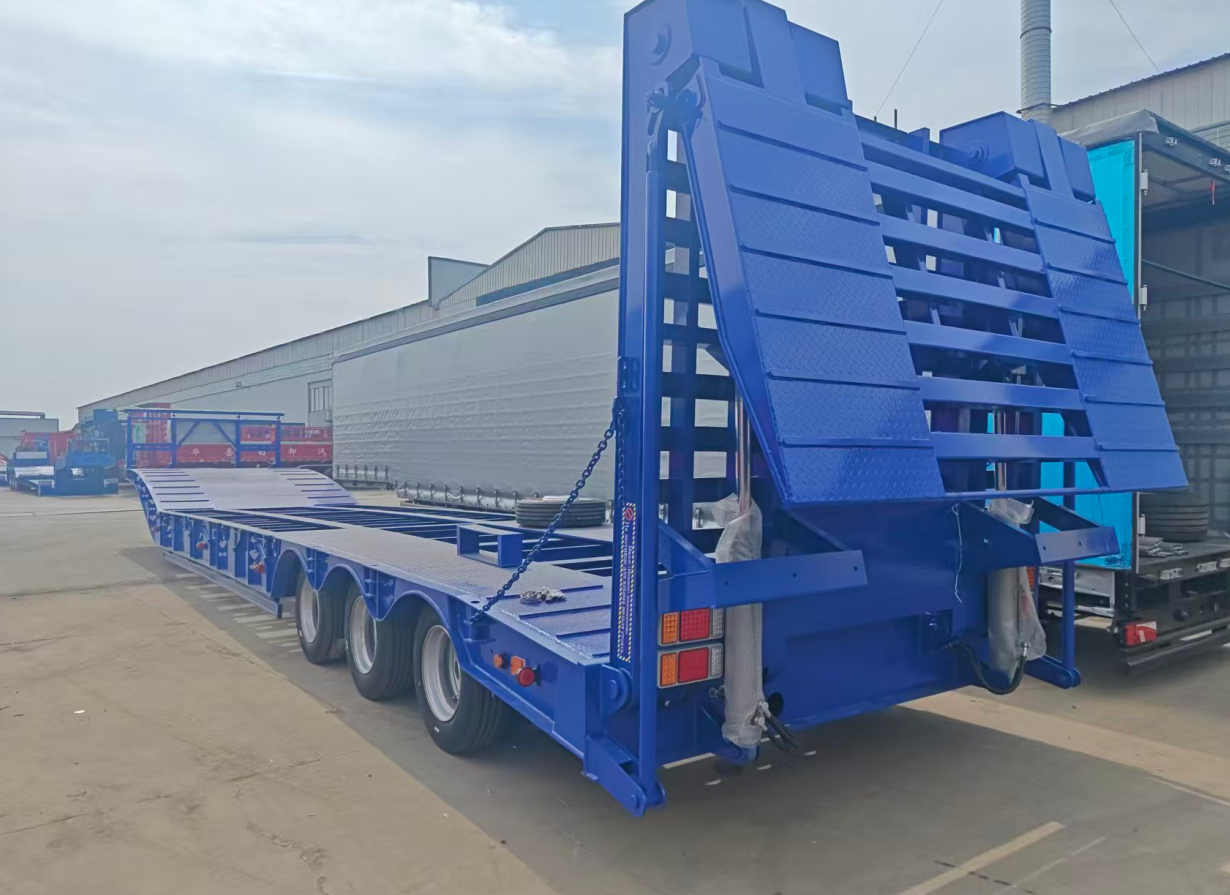

Rear-Loading Physics: How Double-Folding Hydraulic Ramps Save Million-Dollar Equipment

The short, steep angle of standard spring-assisted ramps often causes tracked machinery to experience a fatal "seesaw effect" at the apex. We standardize heavy-duty Double-Folding Hydraulic Ramps at the rear:

• Ultra-Low Incline: Once deployed, the two-stage folding structure mathematically extends the physical runway, reducing the climbing angle to an absolute minimum.

• Absolute Traction: The entire ramp and rear slope are paved with high-strength checkered plates and densely welded anti-slip steel bars, entirely neutralizing the risk of heavy crawler tracks sliding.

• Single-Operator Use: Driven by high-power hydraulics, a single operator can deploy the ramps via a control valve, eliminating hazardous physical exhaustion.

HUAYUE's Advantages

From brutal mechanical leaf spring testing to the seamless integration of high-power hydraulic components, HUAYUE delivers unapologetic manufacturing standards for global heavy-haul fleets. Our 2-to-4 axle matrix perfectly disperses 60-100 tons of ground pressure, ensuring your fleet complies with local axle load regulations while providing a rock-solid mobile platform for your assets.

Customized Solutions for Any Scenario

There is no "one-size-fits-all" in heavy logistics. We provide Customized Solutions for Any Scenario tailored specifically for our clients:

• High-strength side-flip extension brackets for oversized excavators.

• Hybrid decking combinations of 50mm heavy-duty hardwood and checkered steel plates for tracked machinery.

• Customized layouts of high-strength D-rings to perfectly lock down the center of gravity for irregular heavy cargo.

Frequently Asked Questions

Q: What is the core advantage of using 275/70R22.5 low-profile tires compared to traditional large-size tires?

A: This is the optimal solution for balancing load capacity and road access. While maintaining a massive 16-ton capacity per axle, these low-profile tires significantly lower the center of gravity of the entire working deck. This not only enhances anti-rollover stability when transporting high-COG cargo (like transformers) but also provides vital overhead clearance, allowing your fleet to legally navigate under strict bridge height limits.

Q: Why is it recommended to install 50mm hardwood flooring on the deck when transporting heavy crawler excavators?

A: Steel tracks placed directly onto bare steel plates offer an extremely low coefficient of friction, making the cargo highly susceptible to sliding forward during emergency braking. Installing 50mm heavy-duty hardwood provides immense physical traction and absorbs impact stress during bumpy transits, effectively protecting the steel chassis structure from the rigid destruction caused by the tracks.

--------------------------------------------------
