White Paper on Steering System Selection for Multi-Axle Heavy-Haul Trailers: The Engineering Game Between Hydraulic Forced Steering and Self-Tracking Steering

1. Introduction: The Curve Life-and-Death Line of Ultra-Long Heavy-Haul Fleets

In the transport of oversized, heavy-haul cargo (such as wind turbine blades, bridge precasts, and massive industrial vessels) involving 5-axle, 7-axle, or over 10-axle configurations, ultra-long trailer chassis face extreme physical boundaries on the road. If a trailer relies entirely on rigid, fixed axles, the rear tires are subjected to severe lateral dry friction—commonly known as tire scrubbing—when navigating curves. This not only drives up fuel consumption and accelerates tire wear (TCO), but also results in an excessively large turning radius. Consequently, millions of dollars worth of cargo can easily become immobilized at sharp highway switchbacks or narrow factory gates.

To redefine the maneuverability of heavy-haul chassis, the industry has developed two core steering axle methodologies: Passive Self-Tracking (Friction) Steering and Active Hydraulic Forced Steering. How should heavy companies make a scientific selection based on their fleet asset profiles?

2. Hardcore Engineering Comparison of Steering Technical Routes

3. Deep Technical Analysis & HUAYUE Engineering Enhancements

1. Passive Self-Tracking Steering Axles: The Cost-Effective, Labor-Saving Solution

The primary engineering edge of a self-tracking steering axle is its "zero manual interaction" requirement. As the prime mover steers ahead, the rear axles automatically adjust their angles based on the lateral friction coefficient of the road surface. This passive solution is highly mature, requires no extra operator maneuvering a remote control at the rear, and represents a lower initial capital expenditure. It is an excellent match for general long-haul highway fleets running within 5 axles. However, its disadvantage lies in its limited turning radius improvement and heavy reliance on clean road friction (its efficiency drops significantly on muddy, icy, or wet surfaces).

2. All-Wheel Hydraulic Forced Steering System: Ending the Reversing Nightmare of "Crawling Under the Chassis for Manual Pin Insertion"

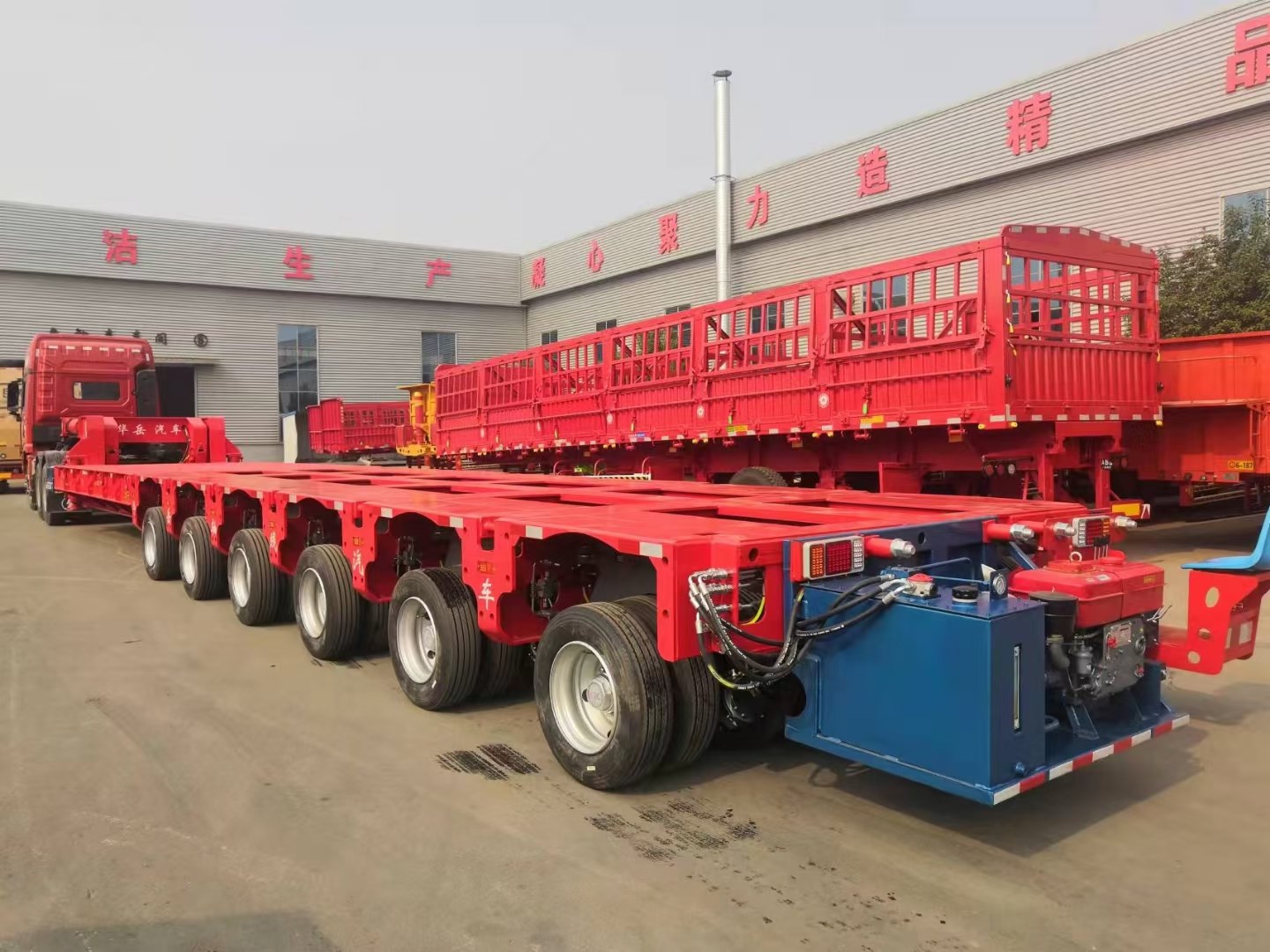

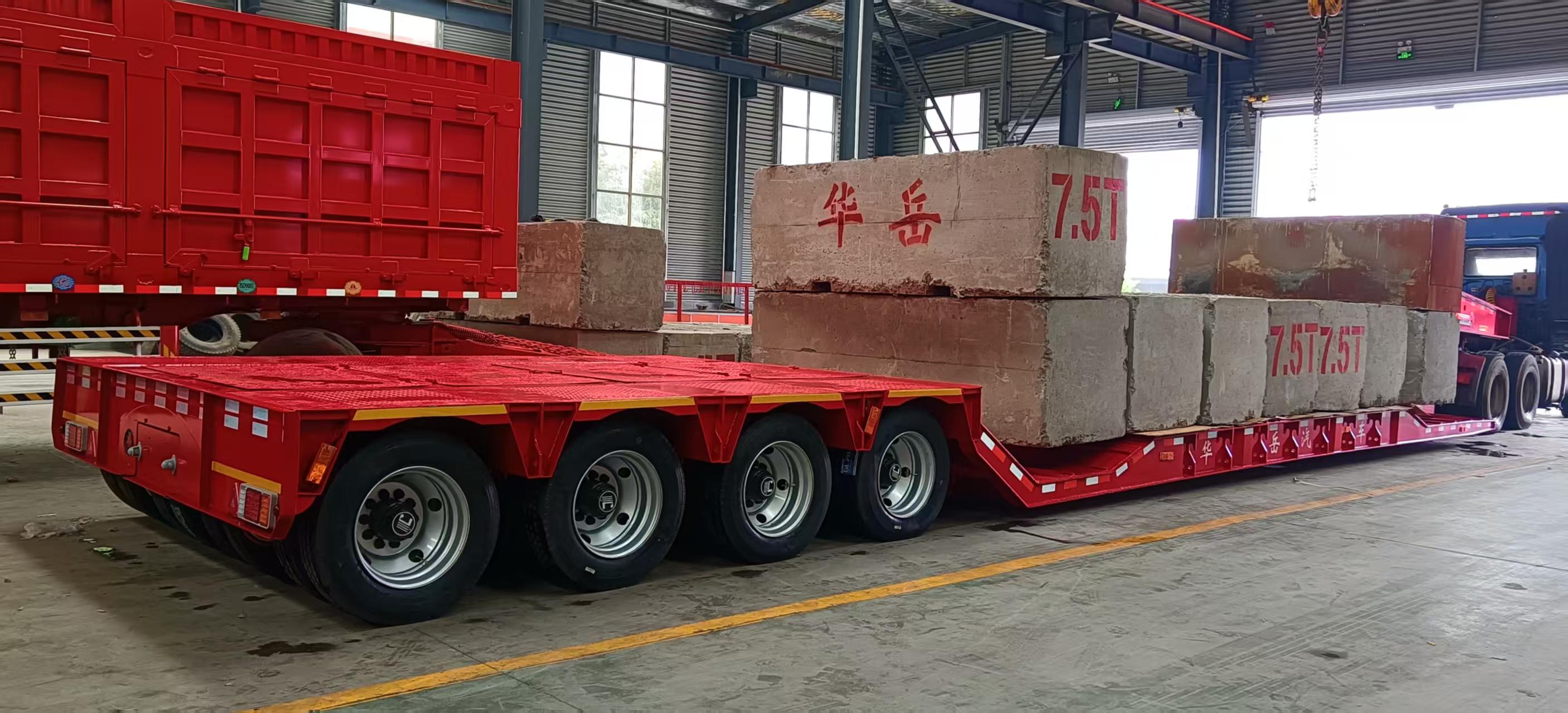

For extreme heavy-haul trailers operating between 7 and 10+ axle lines, active hydraulic forced steering is the absolute standard. Traditional hydraulic steering trailers were notoriously difficult to control during reversing maneuvers; the wheels tended to wobble or sway erratically. Early engineering designs required the driver to stop the rig, crawl beneath a muddy chassis, and manually insert a heavy steel lockpin to lock the axles straight before backing up—a process that was incredibly primitive and physically exhausting.

The HUAYUE Engineering Upgrade: HUAYUE's next-generation hydraulic forced steering system optimizes the integrated hydraulic master turntable at the gooseneck alongside electro-proportional valve blocks. The operator stands safely at the rear using a heavy-duty wireless remote control to execute precise steering adjustments or trigger a one-click automatic alignment lock during reversing, completely eliminating the primitive need to crawl under the chassis.

3. Concentric Circle Control in Perfect Alignment with Ackermann Geometry

When a multi-axle vehicle navigates a demanding S-curve, every single axle line rests at a completely different radius from the curve's geometric center point. If every axle line turned at the exact same angle, the tires would still experience catastrophic lateral scrubbing and sidewall tearing.

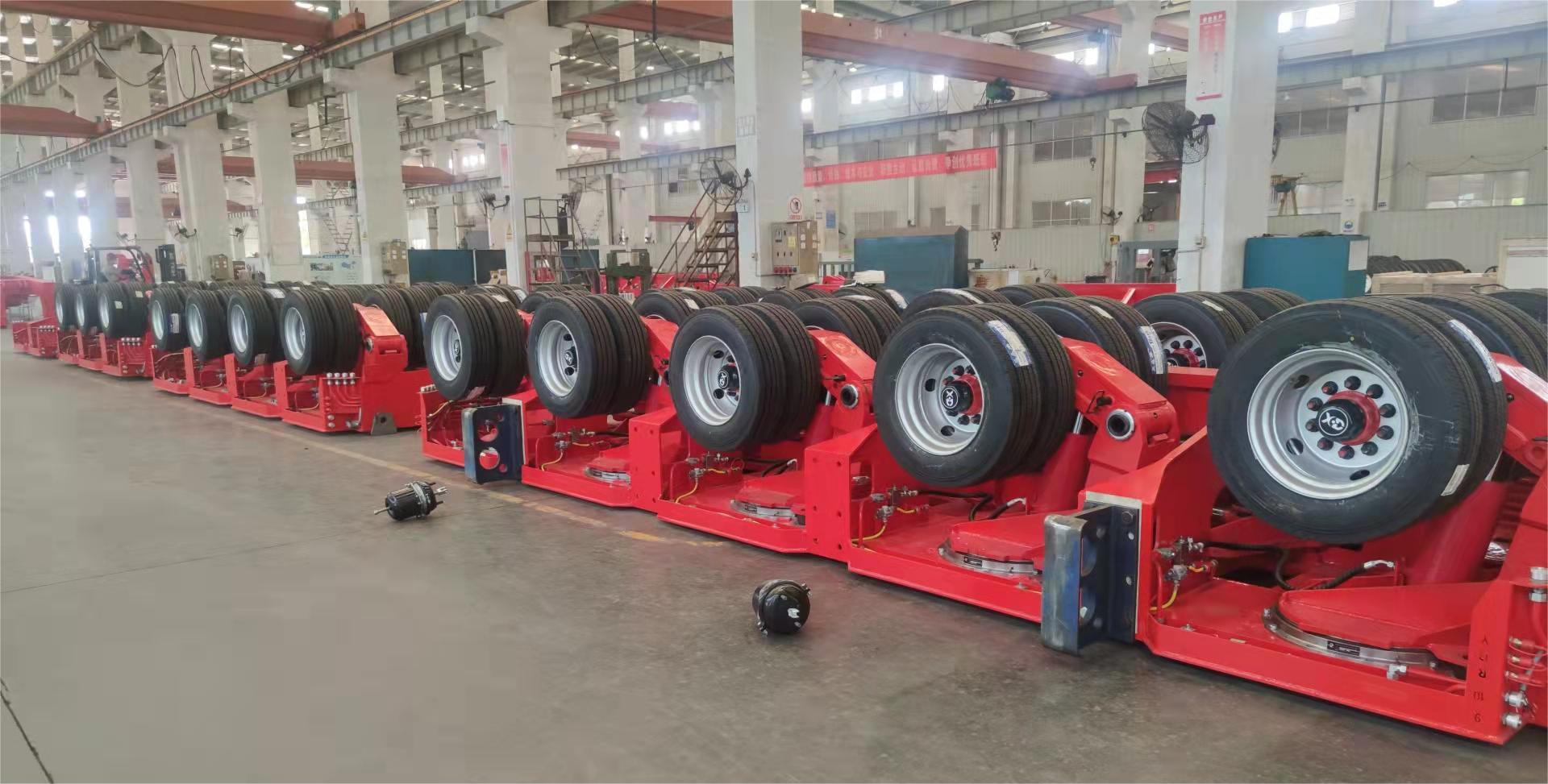

The HUAYUE engineering design team calculates a precise "concentric transmission ratio" for each individual hydraulic steering axle line. From the foremost steering line to the absolute rear axle, the steering angle increases along a strict spatial geometric gradient (with the rear axles achieving up to a 35° or greater angle). This ensures that all 88 tires maintain a state of perfect pure rolling motion throughout any curve, slashing tire wear to virtually zero.

4. Frequently Asked Questions

Q: For a 100-ton telescopic lowbed, should I choose a single central beam or twin box-beams for extension?

A: This decision depends entirely on the vehicle's structural width clearance and its requirement for Torsional Rigidity.

• For a 2.55-meter standard width trailer equipped with complex steering linkages, the internal chassis layout is heavily compressed by steering cylinders and oil lines. Because there is not enough physical space to run parallel beams, it is mandatory to use a single, heavily reinforced central box-beam for telescoping extension.

• For a 3.0-meter wide heavy trailer, the internal chassis clearance is spacious. HUAYUE strongly recommends a "Twin Box-Beam Telescopic" configuration. While vertical load capacities are similar, think of The Chopstick Principle: a single chopstick bends under twisting forces, but two chopsticks bound together provide immense resistance. When an ultra-long trailer twists through a curve under heavy load, the twin box-beam structure delivers vastly superior torsional rigidity, absorbing the destructive flexing forces and significantly extending the structural lifespan of the frame.

Q: In practical operations, how does pure hydraulic remote-control steering avoid coordination errors between the operator and the driver?

A: HUAYUE delivers two advanced integration topologies to solve this. The first is Mechanical Gooseneck Linkage: a mechanical steering wedge block sits inside the trailer's fifth-wheel coupling. As the truck head turns, it directly pulls the master hydraulic cylinders, executing fully automated, perfectly proportional tracking steering without requiring any manual operation. The second is our Heavy Wireless Override Setup optimized for extreme mountain terrains. The operator handles a high-power wireless remote to control the trailer's rear path via direct line-of-sight or cameras, communicating with the driver via radio to raise specific axles and swing the steering lines to maximum lock while at a standstill, allowing the rig to micro-navigate "impossible" hairpin bends.

--------------------------------------------------
