Hydraulic Detachable Gooseneck (RGN) Lowbed Trailer Technology Deep Dive

The Industry Challenge: The Severe Rollover and Slipping Risks of Heavy Machinery "Rear Climbing"

In our previous article, we discussed traditional lowbed trailers with rear climbing ramps, which solve most equipment transport issues. However, when confronting massive hundred-ton mining excavators, heavy asphalt pavers, or crawler cranes, the traditional loading method of "climbing up the deck from the rear ramps" presents fatal operational hazards:

• The Slipping and Rollover Crisis of Heavy Crawlers on Inclines: Massive equipment possesses immense deadweight. No matter how long traditional rear ramps are made, a significant incline angle is unavoidable. When steel tracks climb uphill on angled steel ramps, especially during rain, snow, or when tracks are caked in mud, lethal slipping and sliding are highly probable. If a multi-ton machine loses control and slides backward mid-climb, it often leads to catastrophic machine destruction and fatal accidents.

• Low Equipment Ground Clearance Causing Undercarriage Bottoming Out: Machinery like large road milling machines and pavers have extremely low chassis ground clearance. When they drive up rear ramps onto a trailer, they are highly susceptible to getting caught (bottoming out) on the trailer edge at the sharp breaking angle where the ramps meet the flat deck. This leaves the equipment stranded and can severely damage expensive undercarriage components.

HUAYUE Technical Advantages: Hydraulic Separation System and Ground-Level Loading Re-engineering

To completely eradicate the extreme risks associated with heavy machinery boarding, HUAYUE deeply integrated mechanical chassis structures with hydraulic control technology to introduce the Hydraulic Detachable Gooseneck (RGN) Lowbed Trailer. We completely disrupted the traditional "rear climbing" method, pioneering the safest "front ground-level loading" mode:

Hydraulic Detachable System

This is the core soul of the RGN trailer. We discarded rigid welded goosenecks and designed the gooseneck and the cargo deck as independent modules that can be separated and controlled via massive hydraulic cylinders.

During loading or unloading, the operator simply manipulates control valves. The hydraulic cylinders lift the gooseneck, unlocking the giant mechanical latches connecting it to the main beams. Subsequently, the front towing tractor can drive away with the disconnected gooseneck, completely exposing the entire front end of the trailer deck.

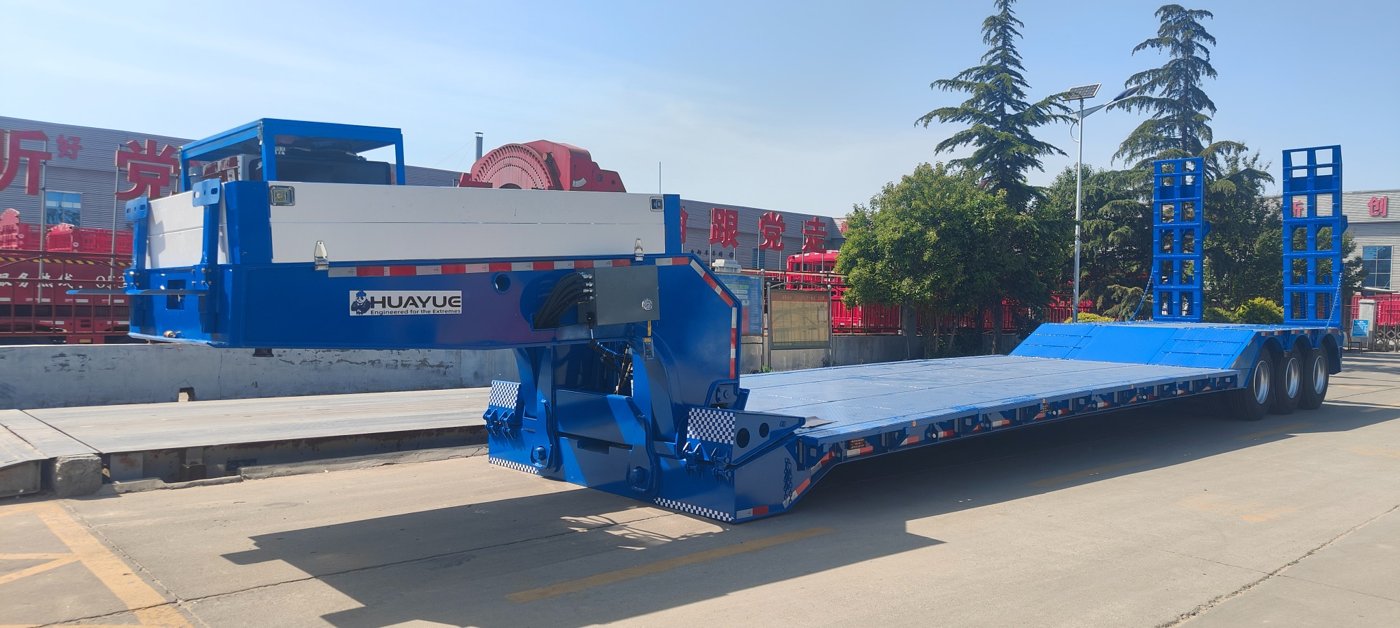

Front-Loading Gentle Incline with "Zero Drop" Ground Contact

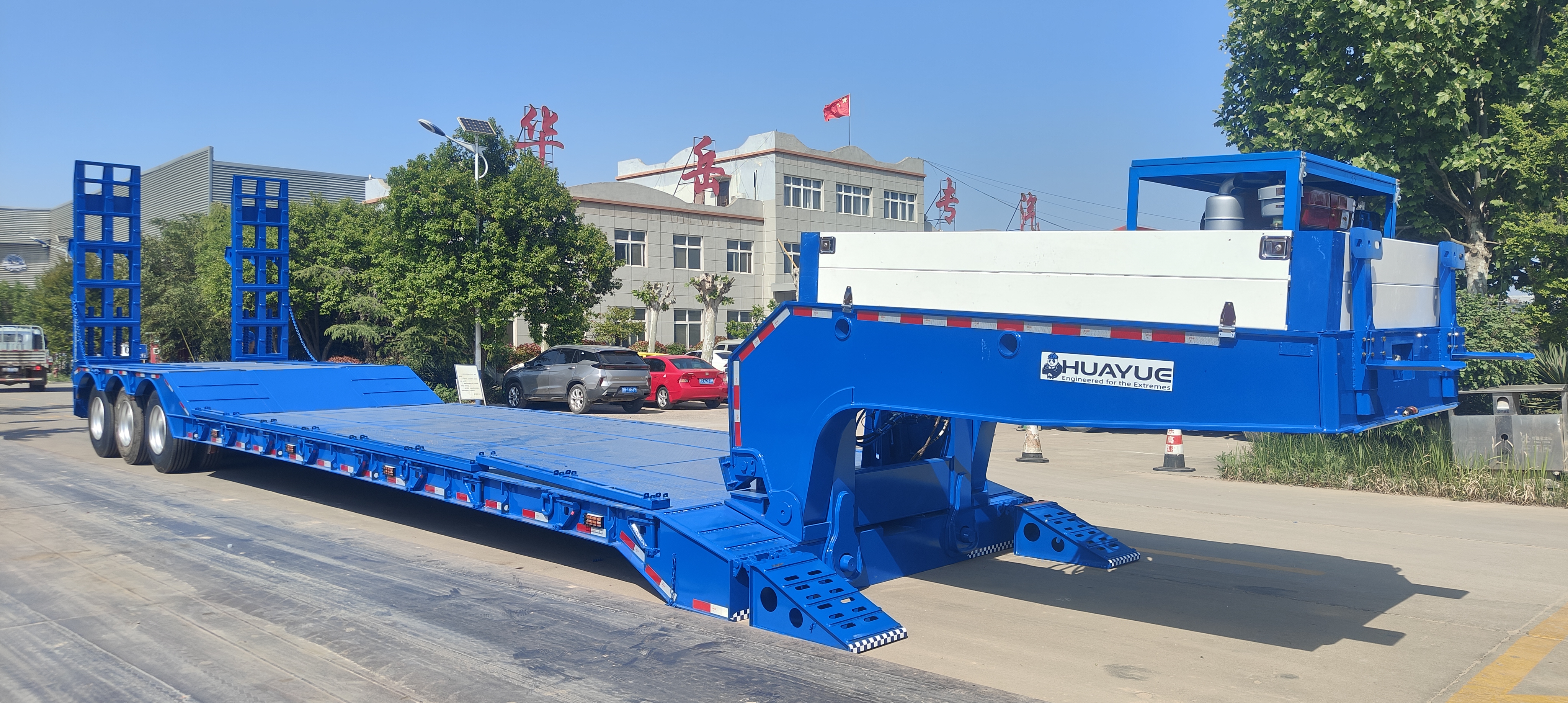

Once the gooseneck is driven away, the front end of the HUAYUE trailer chassis naturally lowers, resting directly flat against the ground. Due to the specialized angled cut design of the front main beams, the front edge of the cargo deck forms an exceptionally gentle, almost ground-flush micro-ramp.

Heavy crawler excavators or ultra-low clearance pavers no longer need to fearfully climb steep rear ramps. They simply drive straight onto the deck from the very front of the trailer, cruising smoothly and safely with their tracks rolling over a minimal incline, just as if driving on flat ground. This completely eliminates the risks of mid-air slipping, backward sliding, and undercarriage bottoming out.

Core Chassis Analysis: Independent Hydraulic Power Station and Heavy-Duty High-Strength Steel Skeleton

Supporting this entire sequence of gooseneck separation and carrying hundred-ton loads relies on HUAYUE's extreme application of hydraulic systems and specialized steel:

• Independent Small Diesel Hydraulic Power Station: To ensure the gooseneck separation mechanism is not limited by the towing tractor's hydraulic system, we integrate an independent small diesel engine and high-pressure hydraulic pump station right inside the gooseneck. Regardless of the tractor head paired with the trailer, it relies on its own power source to stably output massive hydraulic force, driving the giant cylinders to execute gooseneck lifting and locking operations under heavy loads.

• Ultra-High-Strength Steel & Heavy-Duty Locks: When the gooseneck and deck disconnect and reconnect, the connection points endure unimaginably massive shearing and pulling forces. In these core areas, HUAYUE utilizes military-grade specialized high-strength steel, whose yield strength far exceeds standard manganese steel. We also employ precision-machined giant alloy conical locking pins and hooks. This ensures that while hauling hundred-ton equipment at high speeds, the gooseneck and main beams bite together with rock-solid stability, completely preventing fractures.

Technology Showdown: RGN Detachable Gooseneck vs. Traditional Rear Ramp Lowbed

Frequently Asked Questions

Q: Since the gooseneck connection is movable, will it disconnect or make grinding noises when fully loaded on the highway or bad roads?

A: Absolutely not. We utilize a heavy-duty anti-detachment locking mechanism. The connection between the gooseneck and the main deck is not a simple overlap. Giant alloy steel conical pins are inserted deeply into the locking holes of the main beam, reinforced by large-tonnage hydraulic cylinders providing secondary pressure and mechanical self-locking. Under a heavy load, the heavier the cargo, the tighter the downward pressure forces the joint to bite. Combined with high-precision machining, this totally eradicates any loosening, breaking, or friction noise on bumpy roads.

Q: Is operating this hydraulic separating gooseneck highly complex? How many people are needed?

A: It is exceptionally simple and can be completed entirely by one person. HUAYUE centralizes all control valves in a control box on the side of the gooseneck, complete with clear graphic instructions. An experienced driver requires no external crane assistance. By simply standing in a safe zone and pulling the control levers, a single person can complete the hydraulic lifting, pin pulling, and separation sequence within minutes. This massively boosts the loading, unloading, and turnaround efficiency of heavy haulage fleets.

--------------------------------------------------

HUAYUE Trailer

—— Manufacturing Hardcore Equipment, Delivering Global Trust From custom R&D to cross-border after-sales support, HUAYUE provides global logistics companies with more than just semi-trailers—we deliver the absolute confidence to overcome any unexpected challenge.
