Wind Blade Telescopic Semi-Trailer: The Flexible Extension and Steering Revolution for Ultra-Long Logistics

The Industry Challenge: The "Transport Bottleneck" and "Cornering Dead Zones" of 100-Meter Wind Blades

With the global explosion of the clean energy industry, the single-unit capacity of wind turbines is constantly breaking records. Consequently, wind turbine blades have skyrocketed in length, growing from 40 meters to 80 meters, and even surpassing the 100-meter mark. Transporting these extremely "slender" oversized cargoes presents unprecedented physical challenges to heavy-haul fleets:

• The "Empty Redundancy" and "Loaded Deficiency" of Fixed-Length Beams: If you manufacture a fixed 80-meter-long trailer, it can certainly support the blade when loaded. However, when returning empty, this 80-meter "dragon" becomes a nightmare on the highway, making turns incredibly difficult and consuming massive amounts of fuel. Fleets need an intelligent chassis that can extend infinitely when loaded and retract to standard length when empty.

• The "Fatal Turning Radius" Caused by Ultra-Long Wheelbases: Even if the trailer is long enough, when a tractor pulls a near 100-meter blade through mountainous hairpin turns or narrow town intersections, standard fixed axles at the rear create a massive turning difference. This inner-wheel tracking error will cause the massive trailer to run off the road or get completely stuck in the curve.

The Technological Breakthrough: Multi-Stage Telescopic Beams and Hydraulic Follow-Up Steering

To allow these hundred-meter behemoths to navigate highways smoothly, our engineering team developed the Telescopic Extendable Semi-Trailer. This chassis shatters the physical chains of length and steering through two core technologies:

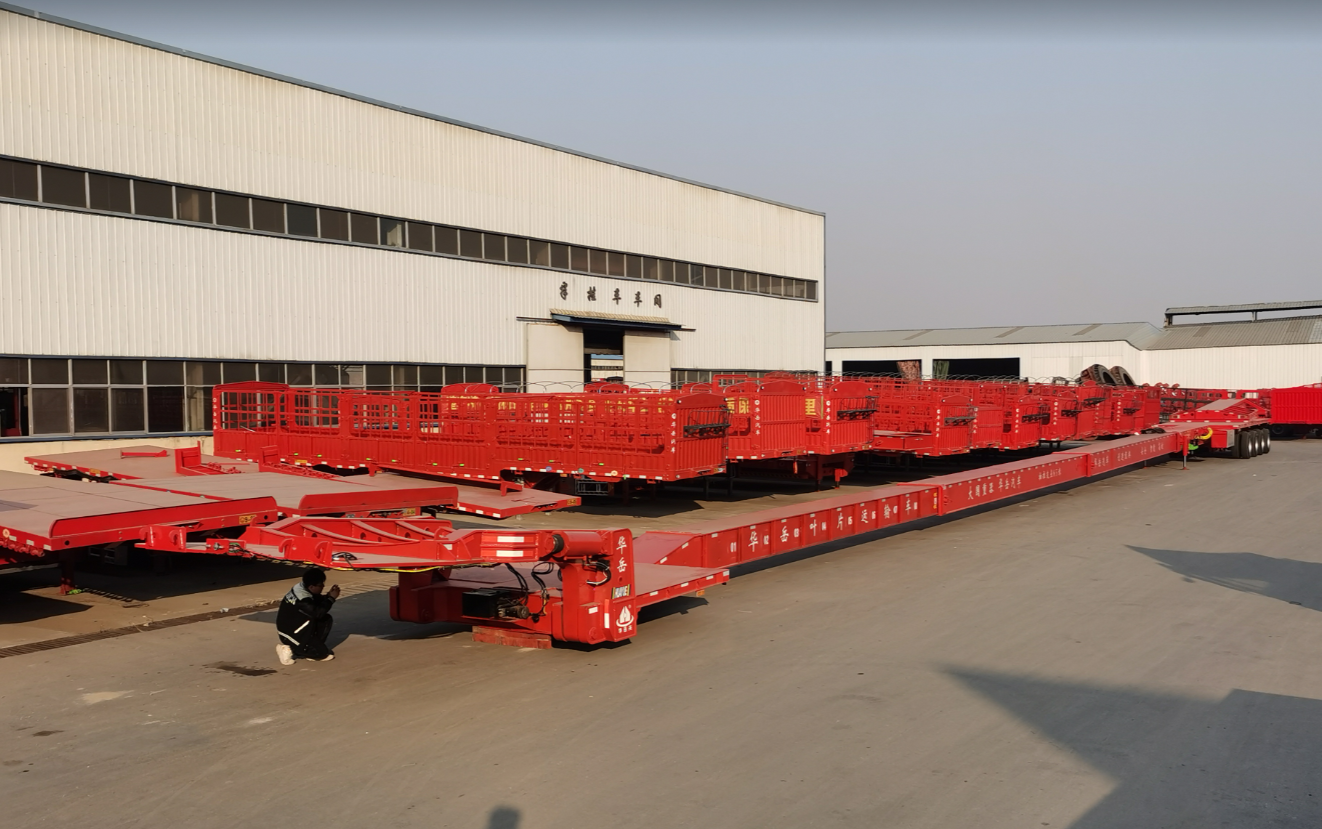

Multi-Stage Nested Telescopic Beams

We abandoned the single fixed beam design. Instead, the main chassis beam is engineered as a multi-stage nested structure, much like a telescope or a fishing rod.

When empty, the total trailer length is identical to a standard lowbed trailer (around 16 to 18 meters), allowing the fleet to reposition empty units effortlessly at highway speeds. Upon arriving at the wind blade loading site, operators disengage the pneumatic locking pins, the tractor drives forward, and the trailer beam is drawn out section by section like a drawer. We offer customized two-stage, three-stage, and even four-stage extreme extensions, instantly expanding the cargo deck length to 50 meters, 80 meters, or more, perfectly accommodating various models of ultra-long wind blades.

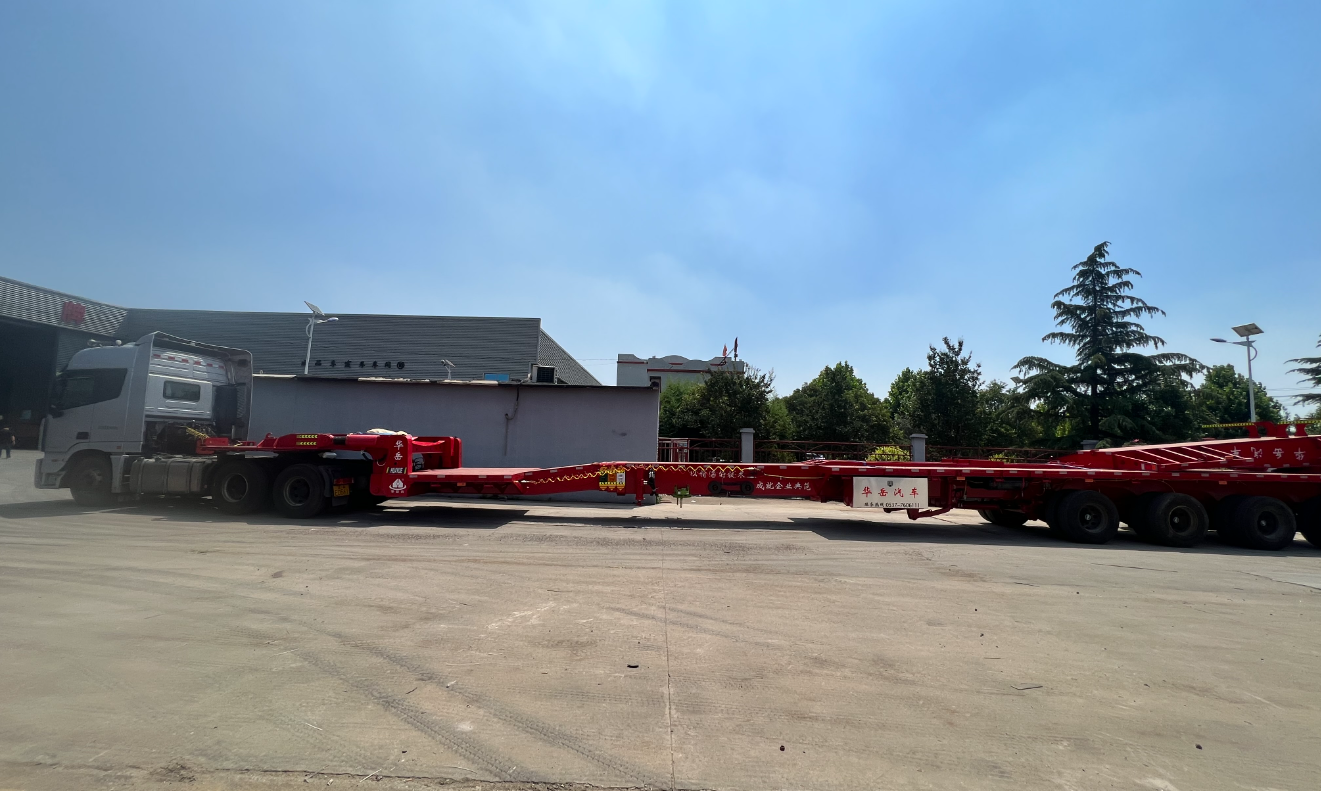

Full Hydraulic Follow-Up Steering Axles

To eliminate the cornering dead zones caused by the ultra-long wheelbase, the rear axles of the telescopic trailer are standard-equipped with a hydraulic follow-up steering system.

When the tractor steering wheel turns at the front, sensors on the fifth wheel precisely capture the articulation angle. This hydraulic signal is instantly transmitted to the steering cylinders at the rear of the trailer. The multiple rows of rear axles actively and precisely deflect in the opposite direction. This "head-to-tail synchronized" hydraulic steering drastically reduces the overall turning radius, allowing a hundred-meter-long trailer to track the curve smoothly like a passenger car, completely avoiding tail swing and getting wedged.

Structural Integrity Unveiled: Torsion Resistance and Specialty Steel Application

Because the main beam is designed as a hollow nested structure, it is highly susceptible to severe sagging or even snapping in the middle when fully extended to dozens of meters under a heavy load. How did we solve this mechanical dilemma?

• Ultra-High Yield Specialty Steel: Both the inner and outer walls of the telescopic main beam are fabricated entirely from ultra-high-yield-strength specialty alloy steel (such as premium HG70 grade or above). This material possesses astounding tensile and bending limits, ensuring the beam will not undergo plastic deformation under extreme extension.

• Precision Box-Section and Pre-Camber Design: The nested beams utilize a closed box-section structure, welded by large automated machines to guarantee absolute weld consistency. Crucially, before leaving the factory, we utilize complex mechanical processes to manufacture a deliberate upward "physical pre-camber" into the beams. When a heavy wind blade rests on the fully extended trailer, this upward camber is pressed perfectly flat. This ensures the chassis remains absolutely level under full load, completely eliminating the risk of downward sagging and fracture.

Technology Showdown: Multi-Stage Telescopic vs. Standard Extended Trailers

Frequently Asked Questions

Q: When the trailer is fully extended, will the middle of the beam snap due to the massive span?

A: Absolutely not. Our engineers designed the nested structure with substantial safety redundancy in the overlap zones. Even when the beam is pulled out to the maximum limit marker, there are still several meters of deep overlap tightly engaged between the beam sections. Combined with high-strength locking pins and our engineered "pre-camber," the chassis effortlessly resists the massive downward bending moments generated by the blade.

Q: Will the hydraulic steering system cause the trailer to wander or become unstable at high highway speeds?

A: No, the system features an intelligent locking function. Safety is our baseline. Our hydraulic follow-up steering system is equipped with a "one-touch centering and locking" function. When the fleet navigates mountain hairpin turns at low speeds, you activate the hydraulic steering for maximum agility. However, when entering a straight highway for high-speed cruising, the operator uses a control panel in the cab to completely lock and center the rear axles. At this point, the rear axles act exactly like a standard fixed trailer, ensuring absolute stability with zero high-speed tail swing.

Q: After long-term exposure to mud and rust, will the telescopic beams jam and fail to extend?

A: Not if properly maintained. We use high-molecular wear-resistant sliding blocks (such as heavy-duty nylon or specialty PTFE) to physically isolate the inner and outer steel beams. This prevents direct steel-on-steel friction, dramatically reducing sliding resistance and preventing rust from seizing the beams together. As long as the fleet regularly cleans the beam tracks and applies standard grease, the beams will slide smoothly even after years of intense use.

--------------------------------------------------
