Hydraulic Modular Trailer: Terrain Compensation Engineering and Heavy Load Chassis Structure

The Industry Challenge: Structural Deflection and Axle Snapping Under Multi-Hundred-Ton Payloads

When transporting payloads weighing hundreds of tons—such as massive step-up transformers, chemical reactors, gas turbines, or shipyard blocks—standard mechanical or air suspensions are completely useless. At this extreme weight class, heavy haulage faces two critical challenges:

• The Threat of "Shock Overloading": Highway transport regulations enforce strict limits on single-axle loads to protect roads and bridges. To carry a two-hundred-ton load, a modular trailer must distribute weight across a dense network of wheels (axle lines). However, road surfaces are never perfectly flat. When a multi-axle trailer moves over a road bump or crest without vertical suspension travel, the wheel on that bump absorbs the entire weight of the trailer, causing sudden weld cracks, bent axle beams, or tire blowouts.

• Lateral Overturning of High-Center-of-Gravity Payloads: Industrial transformers and reactors are highly vertical, with an elevated center of gravity. If the road has a cross-slope or drainage angle, the platform tilts, shifting the center of gravity past the stability margins and risking a catastrophic lateral rollover.

Engineering Solutions: Hydraulic Pendulum Axles and Active Terrain Compensation

To tame gravity for extreme payloads on uneven terrain, the HUAYUE Hydraulic Platform Trailer implements world-class hydraulic compensation chassis engineering:

Hydraulic Pendulum Axles

On HUAYUE modular trailers, each wheelset is mounted to an independent pendulum axle assembly driven by a heavy-duty double-acting hydraulic cylinder:

• Seamless Ground Profiling: The suspension cylinder provides a vertical stroke of up to positive/negative three hundred millimeters (six hundred millimeters of total travel). If a wheel steps into a deep pothole, the cylinder extends; if it hits a bump, the cylinder retracts.

• Perfect Weight Equalization: This active adjustment ensures every single tire maintains constant contact with the road, distributing the heavy payload with completely equalized force across all axles.

Three-Point and Four-Point Hydraulic Grouping

To prevent high-center-of-gravity cargo from tipping, HUAYUE's hydraulic system divides the dozens of suspension cylinders into three or four isolated, closed-loop hydraulic circuits.

• Hydrostatic Pressure Equalization: Fluid pressure is kept completely uniform within each circuit.

• 3D Stabilization: This forms a virtual tripod or quadrupod support system. If the right-hand wheelsets hit a lateral slope, the closed circuit locks the hydraulic oil, acting as rigid columns to hold the cargo deck completely level and prevent tilting.

Suspension Technology Comparison: Hydraulic Pendulum vs. Mechanical vs. Air Ride

HUAYUE's Core Chassis & Hydraulic Advantages

• All-Wheel Forced Hydraulic Steering: Forcing a fifty-meter multi-axle trailer to turn without correct geometry causes massive tire scrubbing, destroying expensive heavy-duty tires in a single trip. HUAYUE's axles are steered by heavy-duty hydraulic cylinders and precision mechanical linkages. Our control system computes the precise steering angle for every single axle line during a turn. Via wireless remote, the driver can toggle between multiple steering profiles: Front-axle steer, Rear-axle steer, Crab-steering, All-wheel steer, and Carousel rotation (three-hundred-and-sixty-degree spin around center). This allows a massive two-hundred-ton convoy to maneuver precisely inside tight substations and industrial facilities.

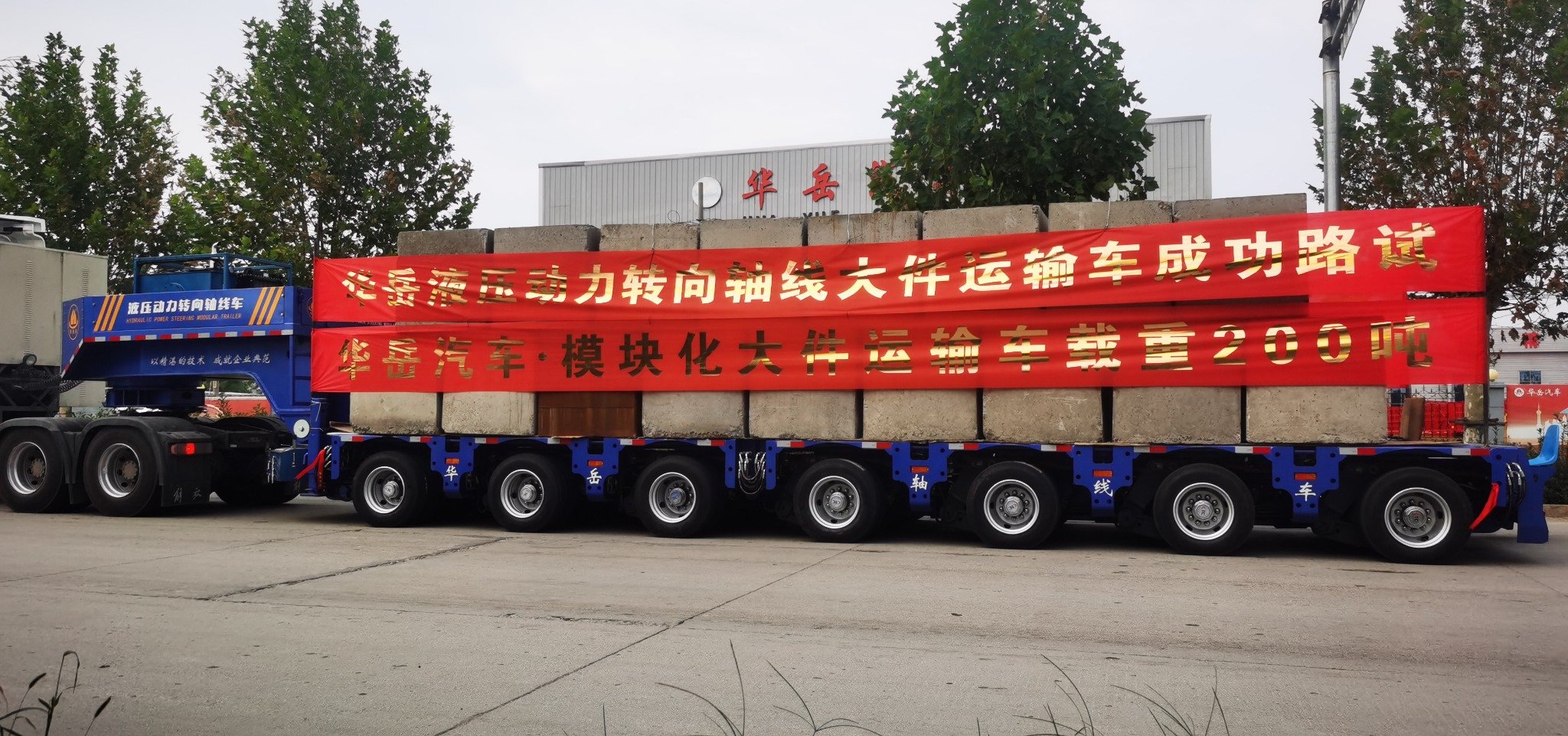

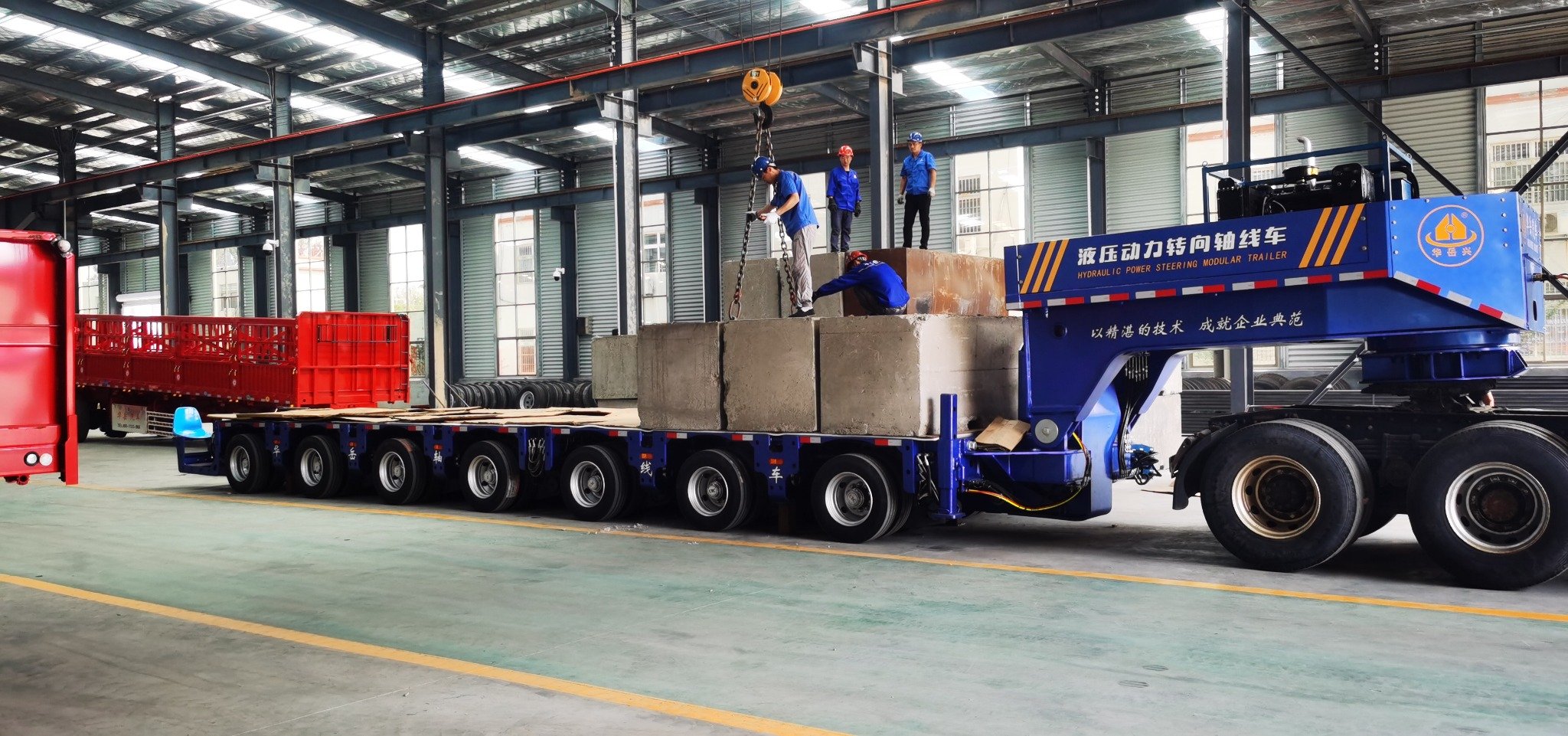

• Ultra-High-Strength Box-Section Spine: The central main beam is the spine of the trailer. HUAYUE utilizes high-strength steel plates welded into a closed box-section main beam, delivering exceptional bending and torsional rigidity. During our standard two-hundred-ton payload road tests—navigating tight S-curves, steep climbs, and uneven road profiles—our main beam demonstrated outstanding elastic performance with one hundred percent recovery, eliminating the risk of structural metal fatigue or cracking.

• Standardized Modular Interoperability: HUAYUE modular trailers feature highly standardized coupling pins, bolt layouts, and quick-connect hydraulic couplings. This allows you to configure two, three, four, five, or six-axle modules end-to-end or side-by-side. Additionally, our hydraulic pressures, suspension cylinder diameters, and control valve interfaces are fully compatible with leading European brands, allowing you to easily integrate HUAYUE modules into your existing premium fleet.

Frequently Asked Questions

Q: How does the hydraulic system prevent line bursts during a 200-ton haul?

A: Through redundant design and hose burst safety valves. HUAYUE hydraulic circuits utilize premium multi-wire steel braided hoses rated to burst pressures multiple times higher than normal operating pressure. Furthermore, each suspension cylinder is equipped with an integrated Hose Burst Safety Valve. In the extreme event of a line rupture, the valve instantly locks the fluid inside the cylinder, keeping the trailer deck stable and preventing lateral tilt.

Q: What makes your modules compatible with major international brands?

A: Micron-level machining and precise hydraulic control matching. The core challenge of modular coupling lies in dimensional tolerance. Connecting pin spacing and shear key tolerances must be machined to high accuracy to prevent cumulative errors over long multi-module configurations. Additionally, the hydraulic pressure-flow curves, steering cylinder strokes, and valving logic must align perfectly. HUAYUE has mastered these processes to guarantee complete mechanical and hydraulic compatibility with global tier-one brands.

--------------------------------------------------
