Saying Goodbye to the "Tire Killer": The Trajectory Mechanics of Multi-Axle Linkage Steering Systems

Core Pain Point: The "Physical Dragging" and Tire Wear of Fixed Axles in Sharp Turns

As special equipment gets heavier, trailer axles increase to 4, 5, or more to distribute the load. However, more axles bring a fatal handling problem: turning geometry interference. When forced to turn in narrow intersections, rear rigid fixed-axle tires cannot change direction. They are violently dragged sideways by the prime mover (Tire Dragging). This massive lateral friction is a "tire killer"—expensive heavy-duty tires can be worn flat in months. Furthermore, fixed axles create a massive turning radius, making the vehicle susceptible to getting stuck.

The Solution: Hydraulic Linkage Steering Axles.

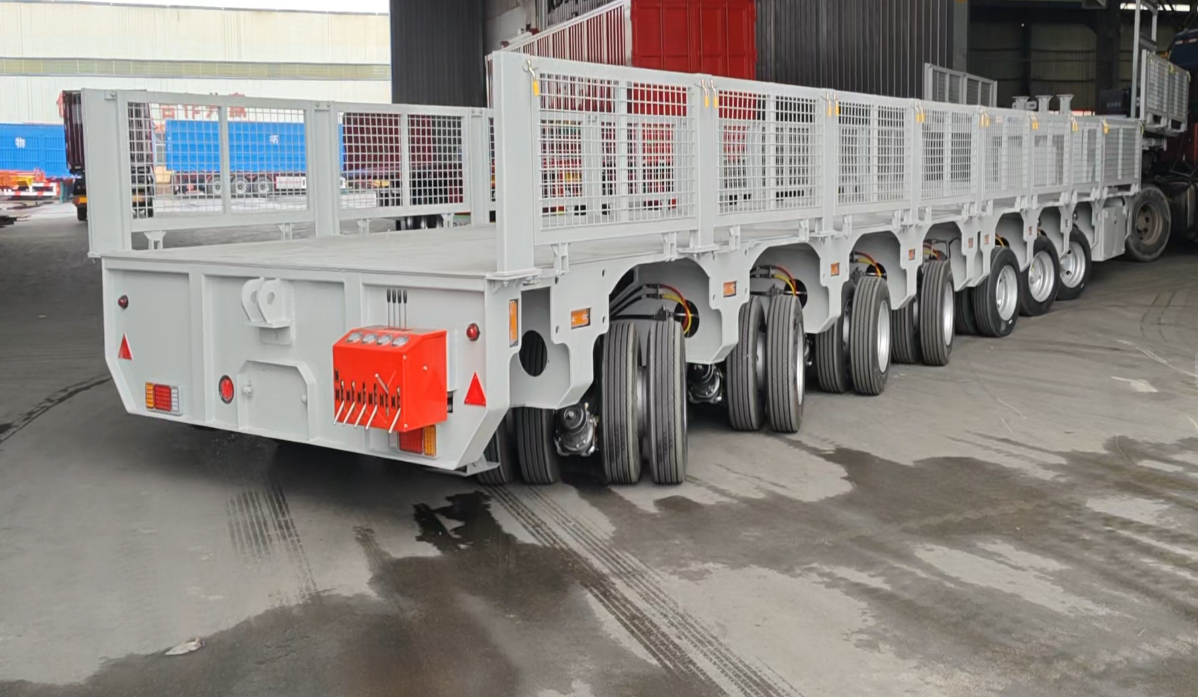

To completely resolve this maneuverability disaster, HUAYUE equips multi-axle special trailers with advanced Hydraulic Linkage Steering Systems.

Through precision closed-loop hydraulic circuits inside the main beams, the trailer's rear axles intelligently sense the turning angle of the prime mover. When the cab turns, the rear axles automatically deflect based on Ackermann steering geometry, achieving perfect "trajectory following." This reduces the turning radius by nearly 30%, completely eliminates lateral tire friction, and slashes tire costs.

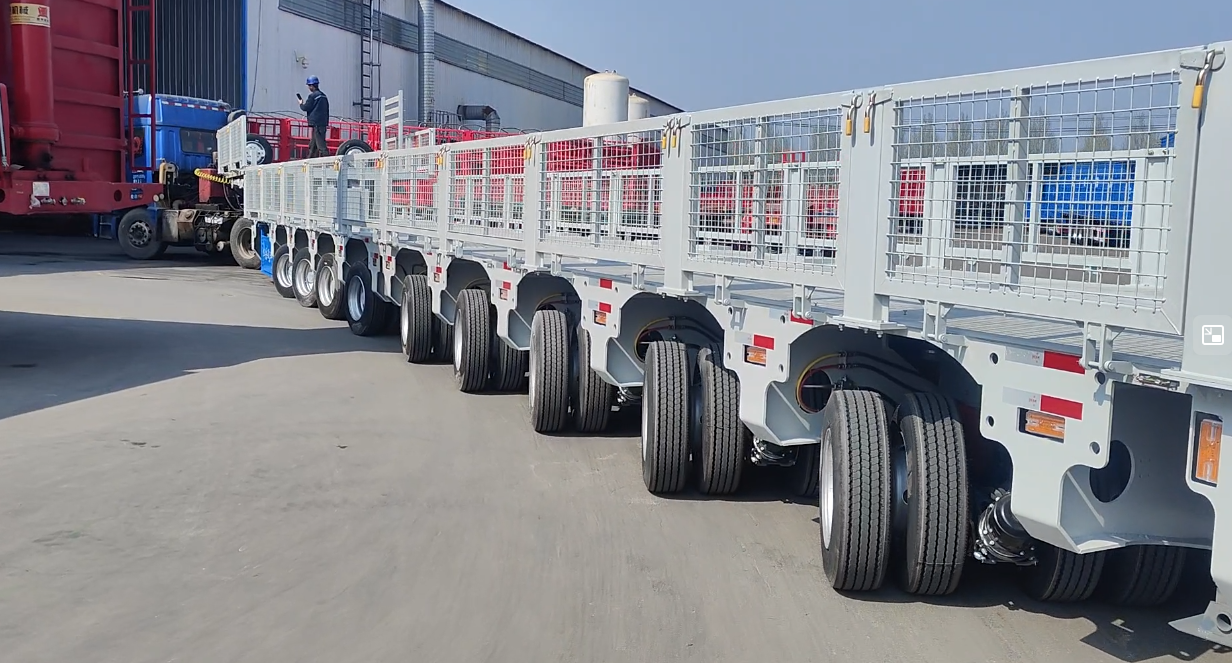

Hydraulic Control Neurons: Precise Distribution of Steering Stress

The core of multi-axle steering is the precise synchronization of hydraulic stress. The hydraulic system integrated into the chassis acts as the "nerve center." It ensures all steering axles can smoothly complete angular deflections under massive pressure, preventing mechanical damage caused by single-axle resistance.

HUAYUE's Advantages

• Ultra-Large Steering Angle Design: HUAYUE optimizes the clearance between the axles and the main beam, allowing a maximum steering angle of up to 45 degrees for ultimate maneuverability.

• Closed-Loop Adaptive Alignment: Our steering features auto-centering. After completing a turn, the hydraulic circuit automatically locks the axles in the center position, ensuring no tail-wagging during high-speed transit.

• Heavy-Duty Wear-Resistant Components: All connections use highly wear-resistant forged components, ensuring durability even in high-dust mining environments.

Frequently Asked Questions

Q: Does the multi-axle steering system still work when reversing?

A: Yes. HUAYUE's hydraulic steering system supports dual-directional sensing. Whether moving forward or in reverse, the rear wheels will accurately follow the prime mover's dynamic trajectory.

Q: Is the steering system safe for highway driving?

A: It is extremely safe. When traveling straight at higher speeds, the hydraulic valves can lock the steering circuit, turning the steering axles into rigid fixed axles for absolute high-speed stability.

Q: Are the maintenance costs high for this complex system?

A: The core logic is "maintenance replaces repair." By using fully enclosed hydraulic circuits and high-spec seals, you only need regular lubrication and fluid checks. The money saved on tire replacements far exceeds routine maintenance costs.

--------------------------------------------------
